- Model H300 - Current Switch

From

0

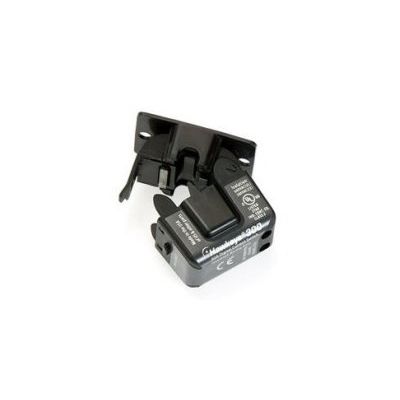

Hawkeye 300 go/no go current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern.Veris has applied new technology to the H300 to achieve impressive improvement in turn-on levels, with the lowest turn-on current in the industry at a mere 150mA!

  • Monitoring on/off status of electrical loads
  • Monitoring direct-drive units, exhaust fans, and other fixed loads
  • Verifying lighting run times

On/off status for direct-drive fans, pumps, and process motors

  • More reliable for status than relays across auxiliary contacts
  • Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
  • Great for lighting status–less expensive than 277V relays
  • Low 0.15A turn-on...ideal for small exhaust fans (not intended to detect belt loss)
  • Removable mounting bracket provides installation flexibility

Monitor status of fans, pumps, motors & other electrical loads

  • Split-core for fast retrofit installation
  • Micro housing for tight enclosures...saves valuable panel space
  • 100% solid-state, no moving parts to fail
  • Polarity insensitive output
  • 5-year limited warranty

  • Sensor Power Induced from monitored current
  • Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)
  • Frequency Range 50/60 Hz
  • Temperature Range -15° to 60°C (5° to 140°F)
  • Humidity Range 10-90% RH, non-condensing
  • Terminal Block Maximum Wire Size 14 AWG
  • Terminal Block Torque (nominal) 4 in-lbs
  • Agency Approvals UL 508 open device listing CE:EN61010-1:2001-02, CAT III, deg. 2, basic insulation

Do not use the LED status indicators as evidence of applied voltage.For applications requiring double or reinforced insulation, please contact the factory.
