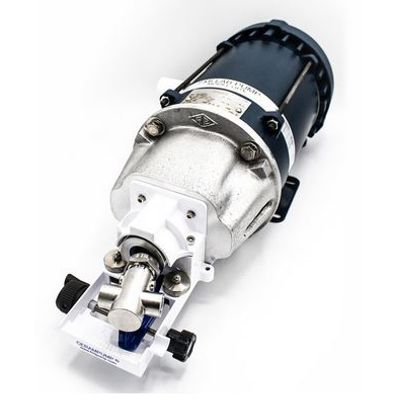

FMI - Model QDX-Q0SSY -Hazardous Duty Pump
The QDX-Q0SSY Hazardous Duty pump is designed for use in hazardous commercial, industrial, and laboratory applications.
Most popular related searches
laboratory productivity
industrial laboratory
metering system
laboratory product
dispensing pump
industrial hazard
pump system
metering pump
- No valves to clog, hang up or service
- Ceramic and fluorocarbon standard wetted materials
- One moving part - piston
- Drift-free performance
- Flow rate infinitely adjustable up to max flow rate either direction
- Flow Rate Max (ml/min): 138
- Flow Rate Min (ml/min): 6.9
- Operating Pressure Max (PSIG): 100
- Operating Pressure Max (Bar): 6.9
- Operating Temperature (F): 140
- Operating Temperature (C): 60
- Wetted Materials: Piston: 316 Stainless Steel
- Wetted Materials: Cylinder Liner: Carbon
- Wetted Materials: Cylinder Case: 316 Stainless Steel
- Dispense Resolution Max (ml/rev): 0.08
- Dispense Resolution Min (ml/rev): 0.004
- RPM (Min/Max): 1725
- Input Supply: 115/230 V AC
- Frequency (Hz): 60
- Current Max (amps): 6.6 / 3.3 A
- Hazardous Duty-Class/Group: Class I (Group C,D), Class II (Group E,F,G)
