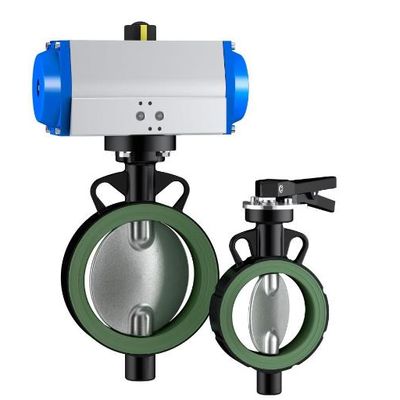

Burgmer - Model 230 GKA -Hazardous Material Valve
Application area: Silo- / Liquid tank trailers. Installation situation: Wafer type. Medium/aggregate state: Fluids, Bulks, Gases. Diameter: DN 50 – DN 200. Pressure range: up to +4,6 bar. Suitability: transport of hazardous materials, class 3 to 6, 8 and 9.
Most popular related searches
- Casing: 1.0619
- Disc: 1.4408 / 1.4539
- Shaft: 1.4404 / 2.4856
- Bearing Pin: 1.4404 / 2.4856
- Sealing: NBR, EPDM, FKM, MVQ
- Flange bores: Kombi-flange: TW-Norm, PN6, PN10
- Actuation
- pneumatic driven (double-acting / single-acting),
- electric driven (setting-drive / variable speed drive),
- Hand worm gear,
- Hand lever,
- Customs locking device
- Guideline
- according to DIN EN 14432:2014
- according to DGRL 2014/68/EU
- according to FDA 177.2600
- according to VO EG 1935/2004
