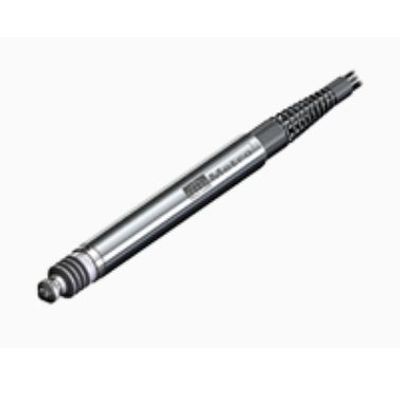

HBT Probe - Pneumatic Actuation
The Half Bridge or LVDT inductive probes technology has been known for over 100 years and enables to offer a products range covering most of the needs in dimensional control. Materials used to manufacture our probes leads to an unqualed robustness and longevity.
HBT's inductive half-bridge transducers offer a range covering most dimensional control needs.
The materials used in the manufacture of the Metro transducers provide unequalled robustness and longevity.
In this version, the measuring rod is held in the retracted position by a spring. A pneumatic pressure applied in the sensor ensures the extension of the measuring rod and the contact force with the part to be measured. This variant saves a lot of space and reduces the costs for the use on machines.
- High accuracy
- Measurement range from 1 to 20 mm
- Resolution of 0.1 micron
- Adjustable pre-travel
- Standard diameter (8g6)
- Interchangeable button M 2.5 mm
- Linearized (option)
- Stainless steel body
- Stem connecting the core to the fingerboard made of side impact resistant titanium
- Precision ball cage fingerboard guide
- Viton® bellows resistant to cutting oils.
- IP65 RATED
