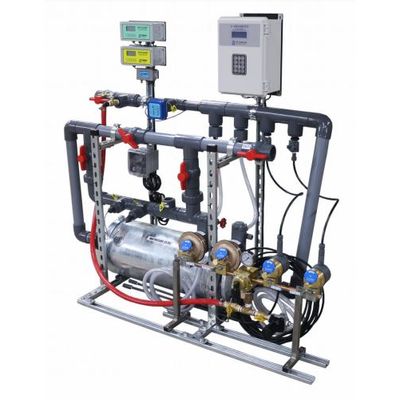

H.E. Anderson - Model JA160D -Ratio: Feeder Injection System
H.E. Anderson products provide unmatched quality, accuracy and flexibility. The JA160D is an inline proportional injection system commonly used to dose fertilizer and other chemicals into a water line for many different applications. The unit maintains a set ratio between water and chemical regardless of water flow or pressure. Our double diaphragm positive displacement pumps do not use any sliding seals and are powered using water pressure from the water line or compressed air. If powering system using water, a drain line is required for waste water. Water is measured using a high accuracy, low resistance flow meter and the injection rate is controlled by the J+ Advanced controller.
The JA160D is our “deluxe” unit which ships preconfigured for common horticulture applications which include dosing fertilizer, acid and sanitizers.
The JA160S is a base model that is customizable for specific customer requirements.
- Legendary quality
- 1:200 fertilizer injection rate up to 160 GPM
- EC and pH monitors to confirm proper chemical levels
- Minimal pressure loss due to unique design
- Accuracy does not degrade over time
- Unit is expandable to grow with operation
- Blend tank ensures uniform chemical mixture
- EPDM diaphragms
- Viton and EPDM check valve seats
- Stainless steel and ceramic ball poppets
- PVC piping, valve bodies and tubing
- 1.5” PVC Insertion Meter
- UHMW hose barbs
- Water flow range: 1.9 to 160 Gallons per minute
- Solutions Injected: 3
- Solution 1 Injection Range: 1:200 (.5%) to 1:2000 (.05%), up to 44 gal/hr
- Solution 2 Injection Range: 1:5320 (.0188%) to 1:53200 (.00188%), up to 1.66 gal/hr
- Solution 3 Injection Range: 1:5320 (.0188%) to 1:53200 (.00188%), up to 1.66 gal/hr
- Pressure Range: 30 to 100 psi
- Temperature Range: 33º to 140º F
- Inlet and Outlet Connections: 2” PVC Unthreaded Socket
- Power Requirements: 120VAC @ 2AMP
- Dimensions Width: 64.5in. Height: 52 in. Depth: 27 in.
- Weight: 350 Lbs.
