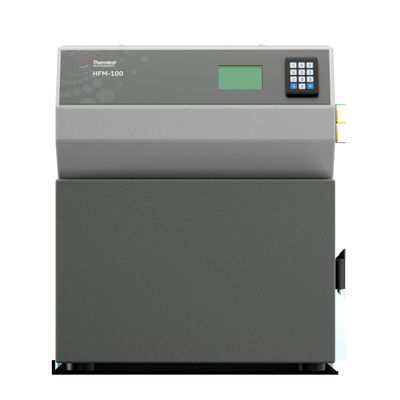

Thermtest - Model HFM-100 -Heat Flow Meter
FromThermtest Inc.
The Thermtest Heat Flow Meter Apparatus is a measuring instrument for determining steady-state heat transfer properties, thermal conductivity, and thermal resistance of flat slab specimens in accordance with EN 12667, ISO 8301, and ASTM C518 standards. It is designed for use in industrial test laboratories for quality control of thermal insulation materials of low and intermediate thermal conductivity, such as polystyrene, cork, wood, wool, etc. To find out more information and to get a quote today visit https://thermtest.com/heat-flow-meterMost popular related searches
heat flow meter
flow meter
laboratory thermal conductivity
thermal conductivity monitoring
digital temperature controller
industrial testing
sample temperature
conductivity monitoring
ASTM standard
industrial laboratory
The Thermtest Heat Flow Meter can be operated in stand-alone or PC controlled configuration. The HFM is designed as a single-specimen symmetrical system with two heat flux transducers and an electrical cooling and heating system for surface temperature control. The temperature controlled measurement chamber maintains a mean sample temperature and prevents moisture buildup.
- Materials: Insulation, Solids, and Textiles
- Type of Sensors: Flux Sensors (x 2)
- Applications: General Testing
- Thermal Conductivity: 0.005 to 0.5 W/mK
- Measurement Time: 30 to 60 min
- Reproducibility: Typically better than 1%
- Accuracy: Better than 3%
- Temperature Range: -20 to 70°C
- Smallest Sample: 150 x 150 x 10 mm
- Largest Sample Size: 300 x 300 x 100 mm
- Standard: ASTM C518, ISO 8301, and EN 12667
