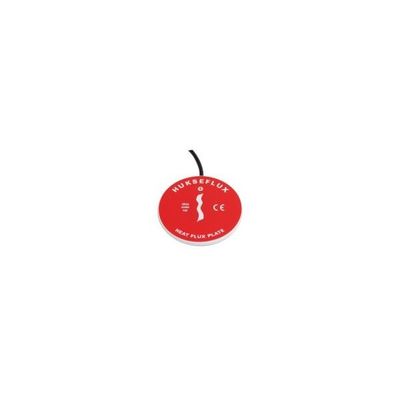

Eltek Hukseflux - Model HFP01 -Heat Flux Sensor
HFP01 heat flux sensor is frequently specified for building performance monitoring studies, that is through walls and building envelopes. The total thermal resistance is kept small by using a ceramics-plastic composite body. The sensor is very robust and stable. It is suitable for long term use on one location as well as repeated installation when a measuring system is used at multiple locations.
HFP01 measures heat flux through the object in which it is incorporated or on which it is mounted, in W/m2. The sensor in HFP01 is a thermopile. This thermopile measures the temperature difference across the ceramics-plastic composite body of HFP01. A thermopile is a passive sensor; it does not require power. Using HFP01 is easy. The heat flux in W/m2 is calculated by dividing the HFP01 output, a small voltage, by the sensitivity. The sensitivity is provided with HFP01 on its calibration certificate. A typical measurement location is equipped with 2 or more sensors.
