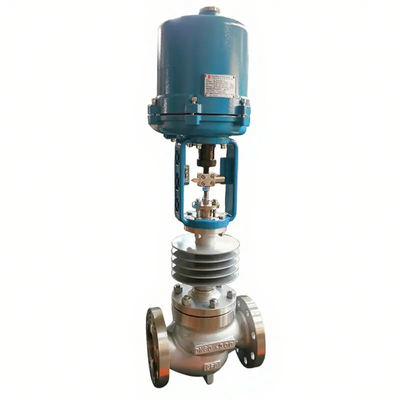

Magpie - Model MV-20250616-LECV-04 -Heat Transfer Oil Control Valve
The Heat Transfer Oil Control Valve from this manufacturer is a high-performance, sleeve-type, single-seated valve designed for precise control in heat transfer systems. It features an ASTM A351 CF8 stainless steel body, providing excellent corrosion resistance and durability. The valve trim is made of SS 304, ensuring long-lasting performance. With a DN80 (3 inch) nominal diameter and a Class 300 LB pressure rating, it is well-suited for demanding industrial applications.
Most popular related searches
control valve
high temperature valve
ASTM A351
electric actuator
transfer valve
ASTM a216
corrosion resistant valves
digital temperature controller
- Product Name: High Temperature Heat Transfer Oil Control Valve
- Trim Form: Sleeve Type, Single Seated
- Body Material: ASTM A351 CF8
- Trim Material: SS 304
- Size: DN80, 3 Inch
- Pressure: Class 300 LB, PN50
- End Connection: RF Flanged
- Operation: Electric Actuator
- Flow Characteristics: Linear, Equal Percentage
- Rangeability: 30:1
- Size Range: DN20-DN300 (3/4-12 Inch)
- Pressure Rating: Class 150 LB, 300 LB, 400 LB, 600 LB (PN16, PN25, PN40, PN64, PN100)
- Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
- Packing Material: Graphite, PTFE
- Seat Leakage: according to ANSI B16.104
- Temperature Range: 250°C to 450°C
- Operation: Electric Actuator (AC 220V, 1-5V DC, 4-20mA DC)
- End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
- Application: Chemical, Petroleum, Power Station, etc.
