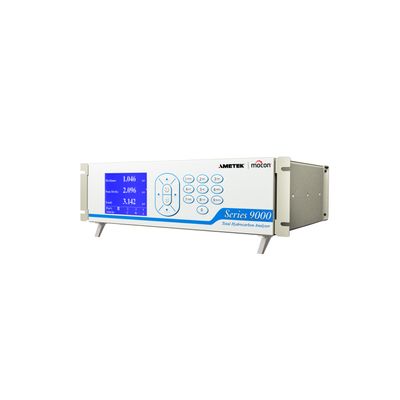

AMETEK MOCON - Model Baseline 9000 -Heated Hydrocarbon Analyzer

Automated Control Features
FlowGuard control of fuel, air, and sample with automatic shut-off
Electronic back-pressure regulator with sample bypass system
Automatic FID ignition
Automatic calibration at user-defined intervals

Versatile Platform
Graphic LCD display with easy to use menu
Benchtop or rack-mountable
Ethernet or serial customizable output
Programmable analog output ranges
Programmable relays for diagnostics, concentration, alarms, and events

Preventive Maintenance Kit
Includes all parts potentially needed on-hand

Gas Generators
Hydrogen generators
Zero Air generators

Software
9000 Keeper provided for method switching

Service & Support Options
Start-up and training, 1 day onsite

Detector
Flame Ionization (FID)

Ranges
User definable based upon calibration (as methane):

• Very Low – 0.15 ppm to 200 ppm
• Low – 0.3 ppm to 2,000ppm
• Medium – 0.6 ppm to 20,000 ppm
• High – 0.003% to 50%

Accuracy, Repeatability
±1% full-scale

Drift, Zero
±0.025% full-scale, 24 hours

Drift, Span
±1% full-scale, 24 hours

Response Time
T90 < 5 seconds

Sampling
Internal single point, pump optional

Alarms
Multilevel concentration and fault alarms, audible and visual

Calibration
Programmable automatic or manual calibration

Support Gas Requirement
UHP Hydrogen (H2) – 30 cc/min
Zero Air – 175 cc/min
Span gas – methane is typical
Fuel blend options available

Display
Graphical LCD, 3.4” x 4.5” (8.64 cm x 11.43 cm)

Outputs, Standard
RS-232
LAN/Ethernet
Analog, 1 programmable 0-20mA/4-20mA isolated output
Relays, 5 programmable Form A relays rated to 3A @230VAC

Operating Temperature
32 to 104°F (0 to 40°C)

Operating Humidity
0 to 95% (non-condensing)

Configuration
Benchtop or 19” (48.3cm) rack-mount, 3U

Other Specifications (all models):
Physical Specifications

• 5.25” H x 19” W x 16.25” D (13.02 cm x 48.26 cm x 41.28 cm)
• <20 Lbs. (9.07 kg)

Electrical Requirements

Voltage: 100 - 240 VAC 50/60 Hz, 1 A


Environmental Monitoring

• AMC in Cleanrooms
• Air Quality Monitoring
• Fugitive Emission Monitoring

Industrial Process Analysis & Control

• Beverage Gas Monitoring
• Industrial Gas Mixing Control
• Process Gas Analysis
• Specialty and Industrial Gas Monitoring
• Surface Logging Analysis
