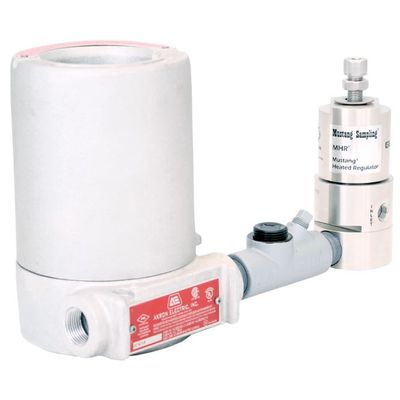

Mustang - Heated Regulator
The Mustang Heated Regulator (MHR) prevents liquid condensation from Joule Thomson cooling in natural gas mixtures when pressure reduction is required. The process temperature is controlled using PID logic throughout the pressure reduction cycle with both pre- and post-regulation heat exchangers along a tortuous path. The final process pressure is set manually using an adjustable regulator control across a specified range. The MHR assembly provides safe and reliable temperature control and pressure reduction essential to ensuring the performance of gas analyzers.
Most popular related searches
gas sample conditioning
digital temperature controller
gas analyzer
gas mixture pressure
gas mixture
sample conditioning
gas sampling
sample gas conditioning
gas conditioning
continuous gas analyzer
- Maximum allowable working pressure : 3750 psig (258 bar)
- Temperature range : -15°F (-26°C) to 300°F (149°C)
- Port sizes : 1/4” female NPT
- Wetted materials : Machined parts: 316 stainless steel/NACE compliant All other metal parts: stainless steel/NACE compliant
- Conduit connection : 3/4” female NPT
- Internal volume : 5 cc
- Cv Coefficient : 0.023
- Thermal cut-off : Normally opens at 284°F (140°C) (other ranges available upon request)
- Electrical enclosure classification : Class 1, Division 1 & 2, Groups B, C, D
- Controller options : Watlow Oven Industries
- Outlet pressure range options : 0-10 (0-0.69 bar) 0-25 (0-1.72 bar) 0-50 (0-3.45 bar) 0-100 (0-6.89 bar) 0-250 (0-17.24 bar) 0-500 (0-34.47 bar)
- Input Supply Voltage : 115 VAC, 215 Watts, 50/60 Hz, ± 10% 208/230 VAC, 215 Watts, 50/60 Hz, ± 10% 24 VDC, 155 Watts
- Seal options : James Walker Viton Kalrez other materials available upon request
- Temperature Controller in Class 1, Division 1 & 2, or Zone 1 Exd Enclosure
- Proportional-Integral-Derivative (PID) controller
- Single-stage design
- Piston pressure sensing elements
- 20 micron inlet filter
- Unique Heat Exchange Chamber
- Adjusting Screw w/ lock nut
- Two section design for easy disassembly from heat plate attachment
- Offsets Joule-Thomson cooling providing continuous gas sample conditioning
- Protects analyzers & helps preserve sample integrity
- Prevents condensation
- Minimizes regulator freeze ups
- Maintains outlet pressure during large inlet pressure swings
- Easy to mount in small or densely populated enclosures
