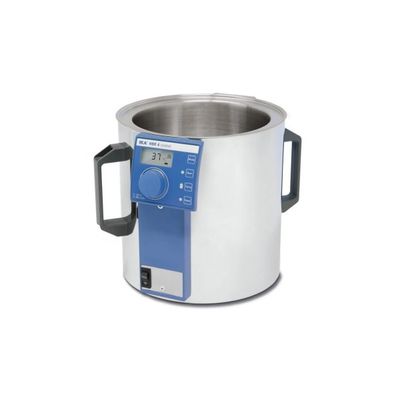

IKA - Model HBR 4 -Heating Baths

The heating bath is noted for:

• Cylindrical bath shape
• Heating elements integrated into the bath base
• Heat transfer media can be low-viscous oil (50 mPas) or water (H2O)
• Useful volume: approx. 4 l
• Heat output: 1000 W
• Two carry handles
• Infinitely variable safety temperature limiter according to DIN 12877
• Double-jacketed mantle protection against burns -
• Digital display for target, actual and safety temperatures as well as speed
• Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
• RS 232 interface

• Heat output 1000 W
• Heating temperature range room temp. - 200 °C
• Heat control stepless
• Set temperature resolution 1 ±K
• Controller oscillation (3 l water / 90 °C) 1 ±K
• Controller oscillation (3l Silicone oil / 50mPas / 150°C) 2 ±K
• Speed display LCD
• Speed control stepless
• Speed range 150 - 800 rpm
• Motor rating input 5 W
• Motor rating output 1 W
• Filling volume max. 4 l
• Filling point min.  20 mm
• Material in contact with medium stainless steel 1.4301
• Adjustable safety circuit 50 - 210 °C
• Class designation acc. DIN 12876 II
• Outer diameter 250 mm
• Inner diameter 200 mm
• Outer height 250 mm
• Inner height 160 mm
• Dimensions (W x H x D) 340 x 250 x 340 mm
• Weight 5.669 kg
• Permissible ambient temperature max. 40 °C
• Permissible relative humidity 80 %
• Protection class according to DIN EN 60529 IP 20
• RS 232 interface yes
• Voltage 230 / 115 / 100 V
• Frequency 50/60 Hz
• Power input 1020 W
