Beijing Hailin Control Technology Inc.
Products
Hailin - Model HA226 & HA326 Series - ...

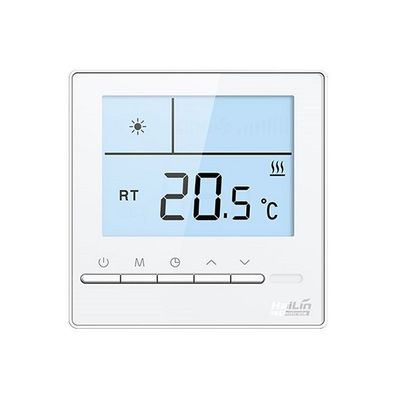

Hailin - Model HA226 & HA326 Series -Heating Thermostat

FromBeijing Hailin Control Technology Inc.

Touch the button. Low temperature protection. Power-off memory. Clock and time switch machine (Optional). 4 periods Programmable (Optional). Single external sensor (Optional). Dual temperature and dual control (Optional).

Most popular related searches

dual temperature controller

electrical resistance heating

NTC sensor

digital temperature controller

thermistor temperature sensor

environmental sensor

Temperature Sensor: NTC Thermistor 100K
Accuracy: ±1°C
Display Accuracy: 0.5°C
Display range:

Clock-free: 0.5°C
Have clock type: l°C

Setpoint Range:

5-35t (built-in sensor)
5^90°C (single external sensor)

Environmental requirements:

Operating temperature 0-45°C
Humidity range 5-95%RH (no-condensation)

Self-consumed power: < 2W
Supply Voltage: 85-250VAC, 50/60Hz
Type of external sensor for electric heating: NTC 10k B=3950
Wiring:

Water heating is connected to a 2.5mm2 wire
Electric heating is connected to a 4mm2 wire

Load current:

Water heating < 2A (resistive load)
Electric heating < 16A (resistive load)

Enclosure: PC+ABS flame retardant
Dimensions: 86 X 86 X 13mm(WxHxD)
Mounting hole spacing: 60mm (standard)
Protection level: IP30
