The Bosworth Company

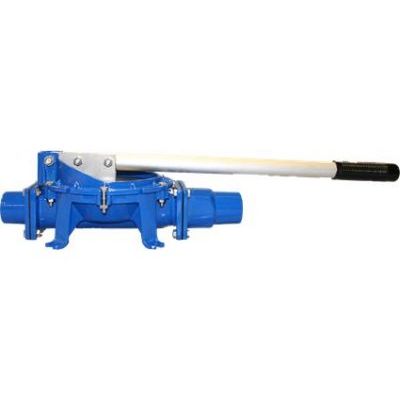

Guzzler - Model GH-2600A / GH-2600B -Heavy Duty Aluminum Hand Pump
Heavy-duty aluminum hand pump. Features universal handle for either horizontal (up-and-down) or vertical (back-and-forth) pumping action.
Most popular related searches
- 20 GPM
- Available in either aluminum (GH-2600A) or non-sparking bronze (GH-2600B)
- Accommodates 1-1/4" - 2" hose
- Stainless steel actuation
- Clamp ring adjusts to 6 different handle orientations
- Removable aluminum handle
- Handle converts quickly to either vertical (back-and-forth) or horizontal (up-and-down) operation
- DIAPHRAGMS FOR THIS PUMP CURRENTLY ON BACKORDER
- Max Pressure: 15 psi / 1.03 bar
- Lift: 12.0 ft / 3.7 m
- 22.0 ft / 6.7 m with check valve
- Head: 30 ft / 9.1 m
- Capacity (@ 72 strokes/min): 20.0 gpm / 75.0 lpm
- Volume per stroke: 1.10 qt / 1.03 l
- Max Service Temp: 190° F / 88° C
- Handle Style: Universal
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N 3-Ply
- Clevis/Button Assembly: Stainless Steel
- Clamp Ring: Epoxy-coated Aluminum
- Inlet Hose Connection: 2" Smooth
- Outlet Hose Connection: 2" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports * Epoxy-coated Aluminum (Blue), Bronze (Bronze)
- Clamp Ring Epoxy-coated Aluminum (Blue), Bronze (Bronze)
- Handle Aluminum: Universal Handle (Removalble)/Silver
- Valves * Buna-N Flapper w/molded steel reinforcement plate
- Diaphragm * Buna-N Double Sided
- Clevis/Button Assembly * Stainless Steel
- Other Thru-Deck Mounting Kit (for vertically oriented handle only)
