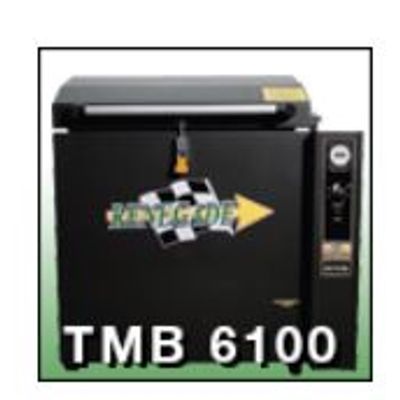

Renegade - Model TMB 6100 -Heavy Duty Automatic Top Load Parts Washers
230 Volt Single Phase with 1hp Wash Cycle Pump, 9 KW Heater and 70 Gallon Sump Capacity. Dimensions Height: 42 inches; Width: 55 inches; Depth: 49 inches.
The Renegade TMB 6100 Automatic Top Load Heavy Duty Parts Washer is the aqueous cleaning and degreasing equipment solution for general repair automotive or leisure equipment machine shops. Your parts will be thoroughly cleaned of grease, oil or lubricants in a high temperature and high pressure environment. Automation features include PLC Programmable Wash Cycle Timer and Heater Timer. Rugged construction means low maintenance but delivers high performance batch after batch. Renegade Aqueous Parts Washers are designed to work with Renegade detergents for maximum cleaning without residue buildup.
- 1 HP Wash Cycle Pump
- 9 KW @ 230V; 12 KW @ 460V
- 500lb Load Capacity
- Sump Capacity - 75 Gallons
- Automatic Low Water Level Shut Down
- Gear Driven Spray Manifold for Durability
- Heavy Duty 11 Gauge Steel Construction
- Max Solution Temperature 185 degrees
- PLC Programmable Wash Cycle Timer
- Programmable 7 Day Timer for Heater and Oil Skimmer
- Washer Door Lid Safety Switch
