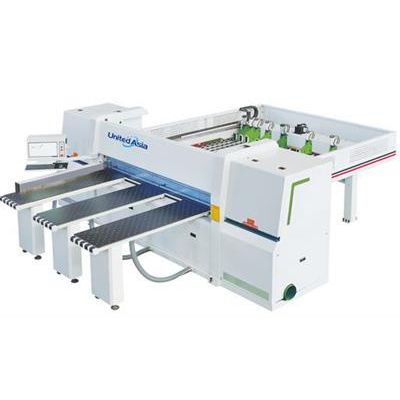

United-Asia - Model MJ330 -Heavy Duty Beam Saw Machine

Maximum sawing length 3280mm. Maximum sawing thickness 120mm. Main blade diameter 350-450mm. Main saw blade shaft 075mm. Main blade speed 4800m/min. Secondary saw blade diameter 0200mm. Secondary saw blade shaft 050mm. Secondary saw blade speed 7000m/min. Saw saw cutting speed 0-100m/min. Overall size(LxWxH) 5556 x5950 x1890mm. Saw back speed 0-120m/min. Main saw drive motor 15kw. Secondary saw drive motor 2.2kw. Saw seat servo drive 2kw. Feed servo motor 2kw. High pressure air supply motor 2.2kwx2. Automatic feeding speed 0-120m/min. Use air pressure 6-8Mpa.
