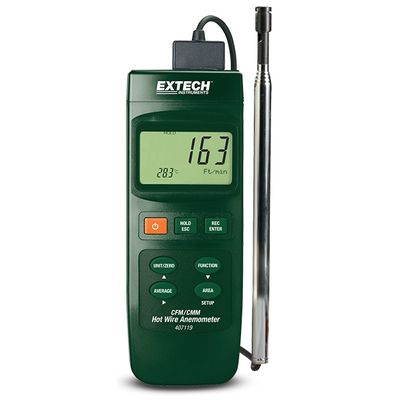

FLIR ExtechModel 407119 -Heavy Duty CFM Hot Wire Thermo-Anemometer

SHARE

The 407119 Heavy Duty CFM Hot Wire Thermo--Anemometer uses a telescoping probe (extends up to 3 ft) which is ideal for use in ducts and ventilating systems. It can accurately measure Air Flow (CFM/CMM), Air Velocity and Temperature. Air Flow can be displayed as an instantaneous value or up to a 20 point average. Additional functions include Data Hold, Min/Max, and Auto power off. Comes complete with telescoping probe with 5.5ft cable, and 4 x AA batteries.

Most popular related searches
  • Air velocity measurements as low as 40ft/min
  • Telescoping probe is ideal for use in ducts and ventilating systems; extends up to 3ft (940mm) long
  • Measures air volume in CFM (ft3/min) and CMM (m3/min) plus Temperature simultaneously
  • Air Flow displayed in 2 modes: Instantaneous value or up to 20 point average
  • Record/Recall MIN and MAX readings
  • Large 1.4" (99,999 count) LCD display
  • Data Hold plus Auto Power Off

General Specifications

  • Air Velocity (ft/min) : 40 to 3346ft/min
  • Air Velocity (ft/min) Basic Accuracy : ±(5% of reading + 5 digits)
  • Air Velocity (ft/min) Max Resolution : 1ft/min
  • Air Velocity (km/h) : 0.7 to 61.2km/h
  • Air Velocity (km/h) Basic Accuracy : ±(5% of reading + 5 digits)
  • Air Velocity (km/h) Max Resolution : 0.1km/h
  • Air Velocity (knots) : 0.4 to 33.0knots
  • Air Velocity (knots) Basic Accuracy : ±(5% of reading + 5 digits)
  • Air Velocity (knots) Max Resolution : 0.1 knots
  • Air Velocity (m/s) : 0.2 to 17.0m/s
  • Air Velocity (m/s) Basic Accuracy : ±(5% of reading + 5 digits)
  • Air Velocity (m/s) Max Resolution : 0.1 m/s
  • Air Velocity (mph) : 0.5 to 38.0MPH
  • Air Velocity (mph) Basic Accuracy : ±(5% of reading + 5 digits)
  • Air Velocity (mph) Max Resolution : 0.1MPH
  • Air Volume (CFM) : 0 to 1,271,200 CFM (ft³/min)
  • Air Volume (CFM) Max Resolution : 0.01 to 100 CFM (ft³/min)
  • Air Volume (CMM) : 0 to 36,000 CMM (m³/min)
  • Air Volume (CMM) Max Resolution : 0.001 to 1 CMM (m³/min)
  • Temperature (Air) : 32 to 122°F (0 to 50°C)
  • Temperature (Air) Basic Accuracy : ±1.5°F/0.8°C
  • Temperature (Air) Max Resolution : 0.1°F/0.1°C

Additional Details

  • Certifications : CE
  • Power : 4 × AA (1.5V) batteries
  • Warranty : 3 years
