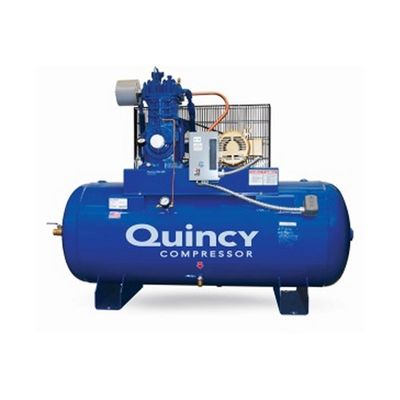

Quincy - Model QR-25 1-25 hp -Heavy Duty Compressors
The QR-25 is pressure lubricated in all critical areas, runs at slower speeds and features durable cast iron construction for longer life and less downtime. View the legendary heritage of the QR-25 below. See also: QR-25 Climate Control. Do you need a heavy-duty compressor that can handle your high-demand compressed air applications? The Quincy QR-25™ is recognized throughout the industry as the leader, unmatched by any reciprocating compressor in the field and backed by one of the most comprehensive five-year warranties in the business. This highly advanced 1-25 hp air compressor series provides reliable, time-tested performance, a low cost of ownership and a maximum efficiency that will have a positive impact on your company’s bottom line for years to come.
Quincy QR-25 Key Features
Our reciprocating piston QR-25 air compressors provide stable air pressure, prolonged equipment life and easy maintenance, making them a trusted choice for industrial organizations worldwide. These two-stage compressors can operate at 1-25 horsepower (hp) and are 100% duty cycle-rated for maximum operational safety.
The Quincy QR-25 has many key features, including:
- Intake unloaders for loadless starting, increased energy savings and reduced motor wear.
- Easy-access valve pockets.
- High-pressure cast-iron pistons for maximum durability.
- Lapped cast-iron valve seats for complete sealing.
- High-efficiency cast-iron cylinders.
- Steel valve discs with cast-iron bumpers and a low-lift design.
- Aluminum connecting rods with a full-flow lubrication oil passage.
- A positive displacement oil pump for continuous lubrication.
- Built-in Safe-Q-Lube and hydraulic unloader for extra protection during oil drops.
- Spin-on oil filters for easy maintenance.
- Oversized tapered roller bearings for simple operation.
- An intercooler with large circular fins for extended equipment life.
Applications of Quincy Reciprocating Air Compressors
Quincy air compressors like the QR-25 are suitable for a wide array of professional and personal applications in industries like these:
- Military
- Plastics
- Food and beverage
- Construction
- Manufacturing
- Chemical plants
- Automotive
- Dry cleaning
- Dental
- Agriculture
- Pharmaceuticals
- Home use
Quincy QR-25 Performance
The QR-25 features pressure-lubricated cast-iron construction that promotes maximum strength and minimal downtime. Quincy reciprocating air compressors operate at reduced speeds, enabling them to produce more air per horsepower than standard compressors — resulting in higher energy and cost savings. Our solutions also deliver an output of up to 500 pound-force per square inch (psi), enabling them to achieve time-tested performance in high-demand compressed air applications.
