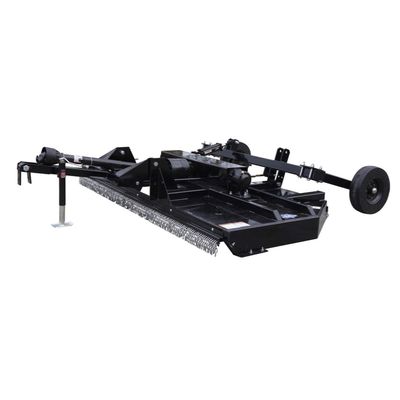

Blue Diamond - Heavy Duty Dual Spindle Cutter
The Blue Diamond® Heavy Duty Dual Spindle Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with minimum 42 hp or 52 hp tractors and are available in 8’ and 10′ widths. The cutter uses a dual spindle with two free swinging blades each, which reduces the shock of impact when a stationary object is contacted. A slip clutch and dual shock couplers protect the gearboxes and drivelines from damage. These come standard with driveline shields and clutch shields along with front and rear chain discharge shields. Two types are offered: a lift type and a pull type.
Most popular related searches
- Pull type hitch with hydraulic rear wheels
- 3” diameter cutting capacity
- Slip clutch protection, dual shock couplers and front/rear chain discharge shields come standard
- Laminated flat-proof wheels
- 2-year warranty
- 5-year limited gearbox warranty
Part Number : 403129 : 403130
MODEL : 8` : 10`
MIN. HORSEPOWER : 42 : 52
CUTTING WIDTH : 96" : 120"
TRANSPORT WIDTH : 98" : 122"
HITCH : Pull Type : Pull Type
CUTTING HEIGHT : 2”-10” : 2”-10”
MAX. CUTTING CAPACITY : 3” : 3”
DECH THICKNESS : 10 GA : 10 GA
SIDE BANDS : 8” : 8”
PTO DRIVE SHAFT : Series 6 w/Slip Clutch : Series 6 w/Slip Clutch
CENTER DRIVE SHAFT : Shock Coupler Protected : Shock Coupler Protected
STUMP JUMPER : 5/8” Plate : 5/8” Plate
CENTER GEARBOX : 125 hp : 125 hp
OUTBOARD GEARBOXES : 100 hp : 100 hp
WHEELL : Laminated : Laminated
HUB : Bearings : Bearings
WEIGHT : 1575 : 1705
SKID SHOES : Replaceable : Replaceable
GEARBOX WARRANTY : 5 yr limited : 5 yr limited
CHAIN GUARDS : Standard : Standard
