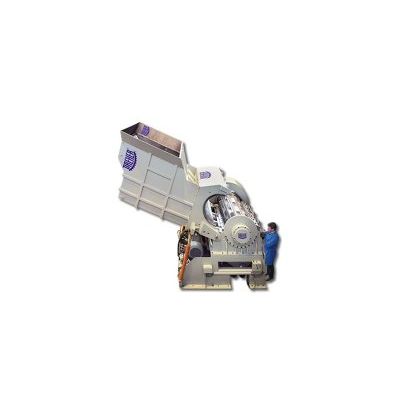

Heinrich - Model SRV -Heavy Duty Granulators
These Heavy-Duty Granulators, have been specially designed for the economical granulation on thick walled sections such as tops and tails, chunks, extruder discharges, thick walled sheeds, pipelines, etc..
According to the size of construction, these Granulators are able to process pieces of the toughest materials of more than 400 kg without pre-crushing. Due to the specially designed rotor and the proven cutting blades arrangement, a regular cutting without overloading of drive is assured. These Granulators are also suitable for hot melt granulation. The recycling of plastic scrap material and reject parts can be fully automated by DREHER Granulators. As the result of many years of experience DREHER can provide you with the optimum information to meet your specific requirements when planning complete plants.
- Granulation of big lumps from more than 400 kg without pre-crushing
- Possibility of automatic feeding device
- High capacity
- Solid construction
- High throughput rate
- German Patent no. 1607475

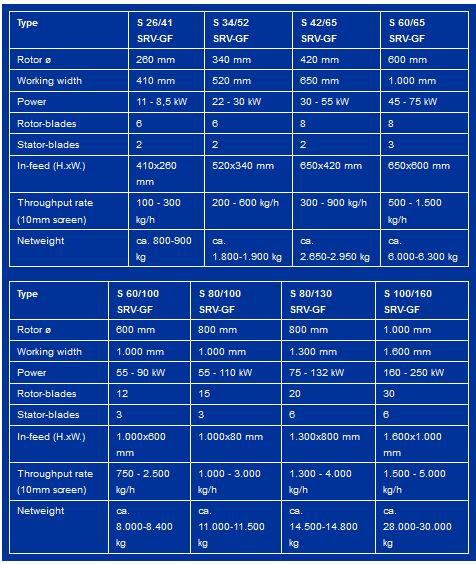

- power:15 kW - 350 kW
- working width:410 - 1.600 mm
- throughput rate:60 - 4.500 kg/h (10mm screen)
