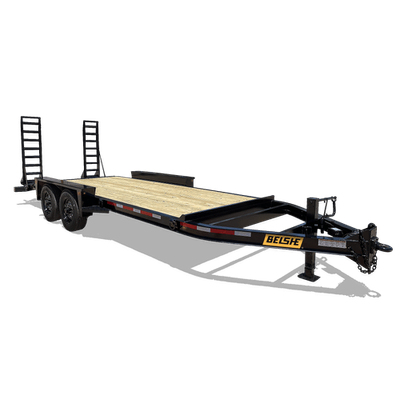

Belshe - Model BF8CX -Heavy Duty Low Profile Trailer
The BF8CX from Belshe Trailer Co. is a robust heavy-duty low profile trailer with a GVWR of 18,000 lbs. Engineered with a next-generation design, it boasts single-piece I-beam construction for enhanced strength and durability. The BF8CX trailer has a deck width of 82 inches and a deck length of 16 feet, making it suitable for various heavy-duty applications. With a load angle of 10 degrees and a dovetail length of 40 inches, it eases the loading and unloading process. Its electric brakes, adjustable ramps, and additional wheel options enhance functionality. Customers can customize with options like a gooseneck, custom color, cargo control, HDD drill kits, and polyurea coating. The trailer’s design incorporates customer-driven enhancements for improved usability and performance, suitable for protecting and transporting equipment safely and efficiently.The BF8CX is the Next Generation design of Belshe's popular T16 trailer. Featuring single-piece I-beam construction with a larger deck width and a higher capacity over previous models, the BF8CX provides maximum strength and durability to protect your equipment investment. With a new streamlined design, the BF8CX incorporates many customer-driven enhancements such as shallower load angels for easier loading/unloading, flush decks, unpdated lighting, and additional wheel options. The BF8CX can be customized with a variety of options to meet your specific equipment needs.
Weight Rating: GVWR: 18,000 lbs.
Axles: (2) 8,000 lbs.
Frame: 6 in. I-Beam Main Frame
Brakes: Electric
Deck Length: 16 ft.
Deck Width: 82.0 in.
Dovetail: 40 in. Wood-Filled; 10 Degree Load Angle
Ramps: 6 ft. x 18 in. Spring-Assisted, Adjustable with Full-Width Ramp Rod and Stiff Arm Supports
Wheel: 17.5 in. 10-bolt or 17.5 in. 8-bolt
Gooseneck
Length
Cargo Control
HDD Drill Kits
Special Machine Packages
Custom Color
Polyurea Coating
