Ohio Magnetics Stearns - Model Series 710 -Heavy-Duty Permanent Magnet Pulleys for Conveyor Systems
The Stearns Series 710 Heavy-Duty Permanent Magnet Pulleys are designed for magnetic separation in conveyor systems handling deeper burdens and operating at faster speeds. Featuring a continuous `Radial Pole` design, these pulleys integrate wedge-shaped magnets that enhance the magnetic flux lines and field intensity. Engineered to meet various application demands, these pulleys offer reliable long-term service and exceptional performance. Manufactured in the USA, these pulleys are suited for industrial applications requiring high-strength magnetic separation, ensuring efficient material handling and processing. The pulleys` robust construction supports sustainable operations across varying industrial requirements and enhances conveyor system efficiency by reducing downtime due to mechanical failures.
Stearns’ continuous “Radial Pole” design incorporates the use of unique, wedge-shaped magnets that provide more lines of flux and a magnetic field of maximum intensity. Application-engineered pulleys give you exceptional performance and reliable, long-term service.

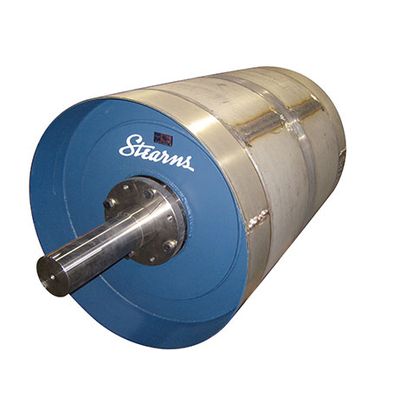

Super 710 Model Magnetic Pulleys
Stearns Series 710 Heavy-Duty Permanent Magnet Pulleys are specifically designed for deeper burdens and faster conveyor speeds.
Features
- Available in a variety of standard sizes up to 48″ in diameter and 72″ in width
- Non-magnetic stainless-steel shaft standard to produce maximum magnetic attraction force
- Minimum 24-inch diameter incorporates double stack wedge-shaped magnets
- Quality heavy duty design
- Ceramic 8 or Rare Earth magnet design available upon request
- Standard permanent magnet sizes for belt widths ranging from 6” to 48” (25 to 1219 mm)
- Models from 12″ to 48″ in diameter
- Efficient, cost-saving recovery of harmful tramp metal; trouble-free operation
- Maximum power and separation, at belt speeds as high as 500 feet per minute (fpm)
- Develops especially powerful magnetic field at the center of the belt, where burden is deepest
- Deep Field Penetration
- No DC Power Required
- All welded body and face construction – no bolts or screws to work loose
