Kuriyama of America, Inc.

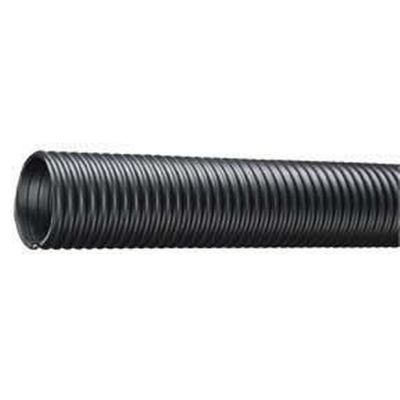

Kuriyama Tigerflex - Model TR1-150X100 -Heavy Duty SBR Wet or Dry Material Handling Hose
RoHS -The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.NOTE:Service life may vary depending on operating conditions and type of material being conveyed.
Most popular related searches
hydro excavator
hydro excavation
static electricity
sequencing batch reactor
hazardous substances
vacuum sewer
industrial vacuum
sewer vacuum truck
vacuum truck
materials handling system
- Fly ash collection
- Grain handling
- Hydro excavation
- Industrial vacuum equipment
- Material handling - heavy duty abrasive
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Sewer truck boom hose
- Shot blast recovery
- Slurry handling
- Superior Rubber Compounds -Tigerflex™ uses specially engineered compounds which provide the ideal combination of excellent abrasion resistance, light weight, flexibility, static dissipation and superior long-lasting durability.
- Static Dissipative Tube -Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
- "Cold-Flex" Materials -Hose remains flexible in sub-zero temperatures.
- Convoluted Outer Cover -Provides increased hose flexibility.
- ID 1 1/2 in38.5 mm
- OD 1.94 in49.2 mm
- Working Pressure at 68ºF 35 psi
- Working Pressure at 104ºF 26 psi
- Vacuum Rating at 68ºF Full inHg
- Vacuum Rating at 104ºF 28 inHg
- Approx. Bending Radius at 68ºF 1.5 in
- Standard Length 100 ft
- Weight 0.50 lbs/ft
- Type Heavy Duty SBR Wet or Dry Material Handling Hose
- Style Superior Rubber Compounds
- Color Black
- Performance Static Dissipative Tube
