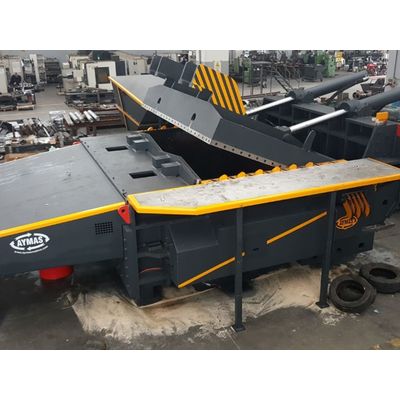

AYMASModel HP3 (60x60)-W -Heavy Duty Scrap Balers

SHARE

The compression chamber walls are covered with HARDOX material for long-term life-cycle and friction resistance. Hydraulic Oil Cooling system is implemented for efficiency hot climate conditions. Cylinder Rods are induction hardened and chrome plated. Pumps and valves of hydraulic system are from worldwide reputable brands such as PARKER,BOSCH-REXROTH. Machine is full automatic by PLC control. It is easy to use with the help of the touch screen. All electrical and electronic parts are by SCHNEIDER and SIEMENS Brands.

Most popular related searches

Feature: Value

  • Bale Size: 60 cm x 60cm
  • Capacity: 15 - 25 ton / hour
  • Cycle Time: 120 seconds
  • Electric Motor Power: 300 kW
  • Working Pressure: 350 bars
  • Chamber Dimensions: 300cm x 250cm x 100cm
  • Machine Weight: 130,000 kg
  • Primary Compression Power: 300 ton
  • Secondary Compression Power: 500 ton
  • Final Compression Power: 800 ton
