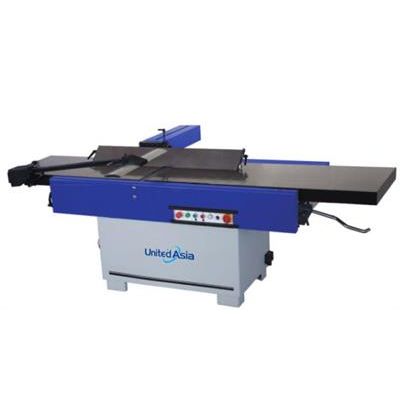

United-Asia - Model PF41 & PF51 -Heavy Duty Surface Planer

Max.planing width 410mm, 510mm. Max.planing depth 8mm, 8mm. Spindle speed 5000rpm, 5000rpm. Number of blades 4pcs, 4pcs. Total worktable length 2600mm 2750mm. Guide fence Cast iron, Cast iron. Main motor power 4kw(brake), 5.5ke(brake). Control power 24v, 24v. Cutting circle diameter 0123mm, 0123mm. Planing spindle diameter 0120mm, 0120mm. Overall dimensions 2600 x 750 x 1050mm, 2750 x 850 x 1050mm. Net weight 630kg, -770kg.
