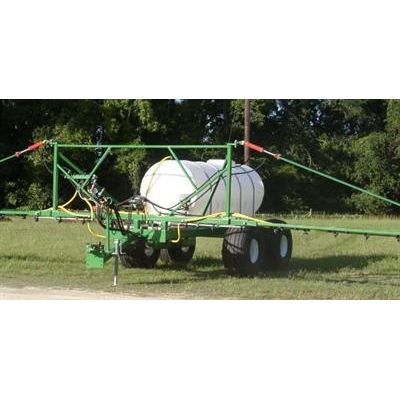

Oliver Dahlman - Heavy-Duty Tandem Axle Sprayer

FRAME
6” x 1/4” Channel Truss Braced 5” x 1/4” Channel

BOOMS
Front or Rear Mounted Hydraulic Folding Stationary Booms with a Spray Height of 40”.  Optional Hydraulic Lifting Booms Offer a Range of 32” to 70” Spray Height. Spring Shock Absorbers and Breakaway Boom Protection Standard.

WHEEL CARRIAGE
Heavy-duty Walking Axles with High Flotation Tires and 5000 lb. Hubs and Spindles.

PLUMBING
Stainless Steel Wet Booms, and High Pressure Hose are used for Long Dependable Service.

ELECTRONICS
TeeJet Electronic Ball Valves and Spray Monitors are Available Options.

• Hypro Pump Matched to Your Spraying Needs.
• Your Choice of TeeJet Spray Nozzles
• Front or Rear Mounted Stationary Booms

• 35 Gallon Mixing System
• Foam Markers
• TeeJet Spray Monitors
• TeeJet Electronic Ball Valves
• Adjustable Wheel Spacing
• Hydraulic Lifting Booms
