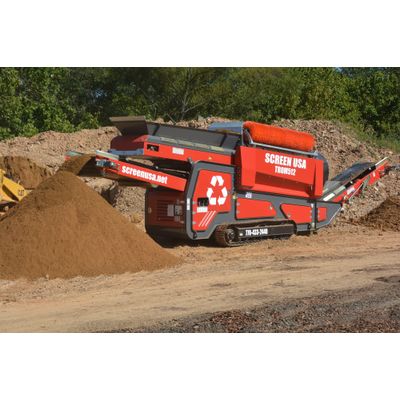

Screen USA - Model TROM 512 -Heavy Duty Trommel Screen

SHARE

The Low Cost, Heavy Duty Trommel Screen For Small & Medium Producers.

Most popular related searches
trommel screener
trommel screen
concrete washout
topsoil screening
belt feeder
aerator

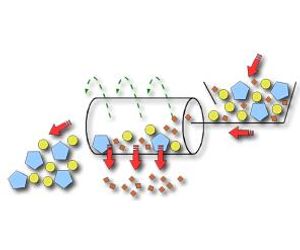

Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

Dry Screens

  • Topsoil
  • Compost
  • Peat
  • Sand
  • Aglime
  • Decomposed Bark
  • Concrete Washout

1. Engine

  • 75HP Deutz Tier IV diesel

2. Screen

  • 5`-0 x 12`-0 Dual Drive Trommel Drum

3. Hopper

  • 3.2 Cubic yard

4. Feed Conveyor

  • 39" Wide Feeder Belt

5. Fluid Tanks

  • 18 Gallon Fuel
  • 70 Gallon Hydraulic

6. Fines Conveyor

  • 36" Wide, 1 0`-0" Discharge Height

7. Overs Conveyor

  • 30” Wide, 7`-8" Discharge Height

8. Weight

  • 21, 900 LBS.

9. Easy Access Drum

  • Doors Open On Each Side
