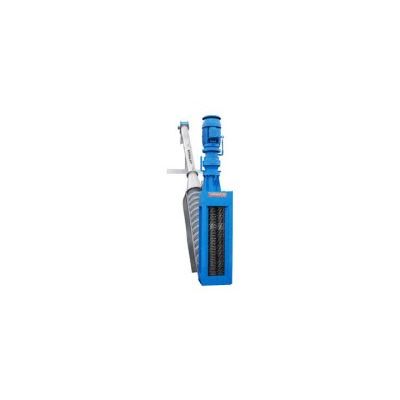

Spiralift - Model SLX -Heavy Institutional Effluent Fine Screening
The Spiralift SLX is a heavy-duty system specifically built for screening of heavy prison and institutional wastewater effluent. This powerful system effectively handles large, concentrated solids including clothing, sneakers, sheets, blankets, wood and other debris too large for standard-duty systems to handle.
Spiralift SLX screens, wash, convey, and compact even large solids in one integrated, easy to install system. This unit features a heavy Taskmaster TM1600 15HP shredder coupled with an oversized channel screen. The Taskmaster shreds the solids which are then captured on a fine screen and intensively washed. As the solids are conveyed up the transport, free water drains back into the channel. The solids are discharged into a bin or conveyor.
SPIRALIFT SLX12
- Grinder: TASKMASTER TM1600
- Typical HP: 10hp
- Nom. Auger Dia. 12" (300mm)
- Auger HP 2HP (1.5kw)
- Auger Material High Strength Steel
- Screen Material Stainless Steel
- Screen Perforations: 1/4" (6mm)
- Level Sensor Conductive
- Capacity Range: 3.5 MGD
- Max Discharge Height: 56" (1400 MM)
- Channel Width: 20-36"
SPIRALIFT SLX20
- Grinder: TASKMASTER TM1600
- Typical HP: 10hp
- Nom. Auger Dia. 20"
- Auger HP 3HP
- Auger Material High Strength Steel
- Screen Material Stainless Steel
- Screen Perforations: 1/4" (6mm)
- Level Sensor Conductive
- Capacity Range: 7 MGD
- Max Discharge Height: 56" (1400 MM)
- Channel Width: 24-48
