Malvern - Model HMD -Heavy Media Drum for Dense Media Separation

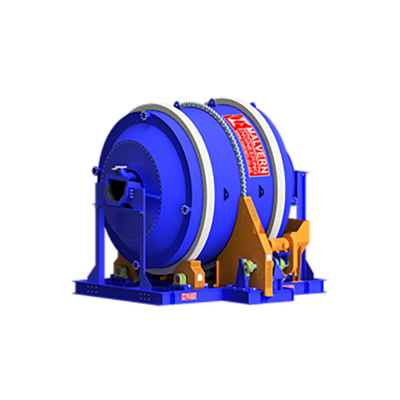

The Heavy Media Drum (HMD) is engineered for dense media separation of materials ranging from 10mm to 300mm. Its cylindrical drum features conical sections and is equipped with a feed chute, sinks launder, and perforated lifters for effective separation. The drum is mounted on two forged steel tires and rotates via a drive system comprising V-belts and a motor connected through a gearbox. The assembly is supported by steel roller configurations to ensure stability, with thrust rollers controlling lateral movement. The drum's internal setup is designed for separation efficiency, as denser particles are transported to the sinks launder while lighter ones overflow for media recovery. All components, including flexible and rigid skirts and pipework, are supported by horizontal beams, allowing for precise control of media density within the drum for continuous operation. This machine finds extensive application in industries where precise separation of dense materials is essential.
