HEFModel FAM -Bushings

SHARE

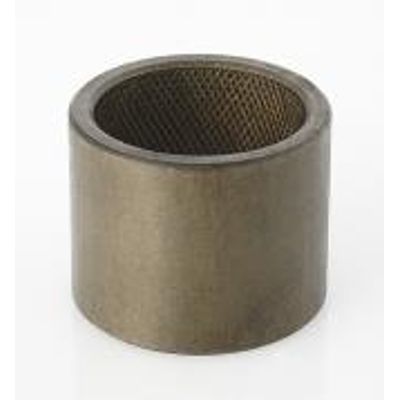

FAM bushings are manufactured from manganese steel, which provides excellent resistance to abrasive wear thanks to a mechanical work hardening of the contact area. Only an initial greasing is required.  FAM bushings have internal cross hatched topography making the surface harder and helping removing abrasive particles.

Most popular related searches

FAM® L or MANGACHOC bushing have smooth internal diameter. They are mainly used for their high resistance to abrasion and high contact pressure in shock working conditions, with no maintenance. MANGACHOC technology is also available on spherical plain bearing in case of angular misalignment or flexion in the joint.

Mating Shaft:

Shafts hardened for 56 to 60 Hrc are recommended.
For optimal performances of the joints, special shafts are available from HEF DUFERRIT: FAM® ST, FAM® HT, FAM® OX.

  • No maintenance
  • High resistance to abrasion
  • High resistance to shocks
  • Steel industry
  • Cement industry
  • Mining industry
  • Handling / Attachment
