HEF - Model H-Liner - S & S1 -Composite Bushings

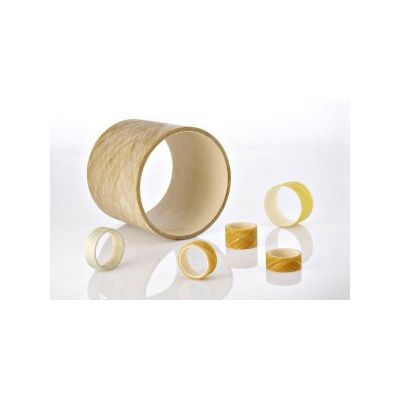

These bushings, manufactured from a friction liner applied on a glass fiber structure, have excellent friction properties and improved wear resistance without external lubrication even on high loads

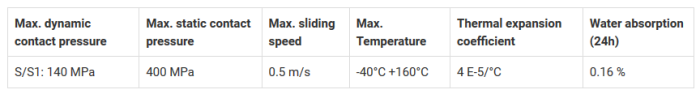

Products Characteristics:
The woven material of H-LINER™ S/S1 is composed of a friction layer backed on a high mechanical resistance composite structure. The technical characteristics are much more higher than extruded plastics and don`t require any greasing.
Advantages of H-LINER™ S/S1:
- With no maintenance, self-lubricating
- High loads
- Weight Reduction
- Noise Reduction
Mating shaft:
For optimal performance we recommend to use grinded pin with a roughness lower than Ra 0,4 μm and hardness higher than 400 HB. HEF DURFERRIT PEL™ OX pin are particularly appropriated to work against H-Liner® bushings.
Assembly instructions
H-Liner™ M bearings are best assembled by press fitting or by nitrogen mounting. (Other assembly techniques can also be used, ex: glue). For further information, please contact HEF DURFERRIT prior to use.
