Heitker GmbH
Heitker - Model Type 1-6 LK -Rainwater Treatment System
FromHeitker GmbH
Sedimentation system with lamellar clarifier (PATENT) permanent damming filter system , material PP, Ø 1,000 mm x L 6,000 mm, filter performance / flow rate according to DWA-A 153, connections according to specifications, connections for ventilation etc. Emergency overflow, 2 pcs. Dome attachment DN 600 for on-site dome shaft construction.
Most popular related searches
wheel loader
mobile crane
sedimentation system
rainwater treatment
rainwater system
wheeled excavator trailer
discharge pipe
clarifier system
rainwater
water barrier

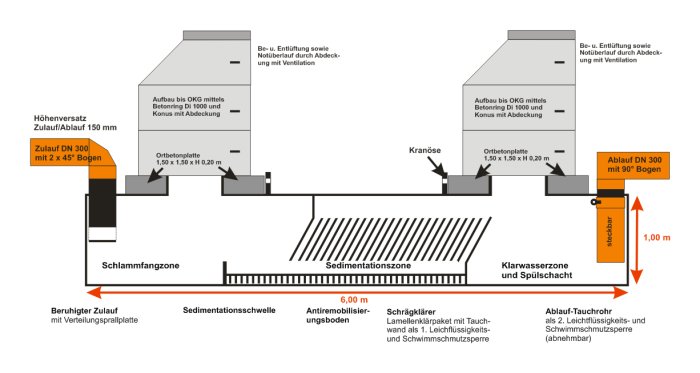

- 2 sedimentation zones
- Sediment threshold
- Immersion wall with lamellar inclined clarification package
L 2.00 mx W 0.80 mx H 0.50 m
with 1.6 sqm inflow area - Floating dirt and light liquid barrier
- Clear water zone with immersion pipe discharge to the subsequent treatment stage
- Body fluid retention volume 3.70 cbm
- Weight approx. 0.4 tons, which means that it can be installed using a wheel loader or excavator and no mobile crane is required.
- Flat design, low installation depth
- Maintenance contract required
Maintenance
recommendation : initially quarterly. On-site services:
2 pcs. Dome shaft construction Ø 1.00 m with concrete ring / cone / BEGU cover KL. __ on reinforced in-situ concrete slab 1.60 mx 1.60 mx 0.25 m, as well as ventilation and piping of the filter system
