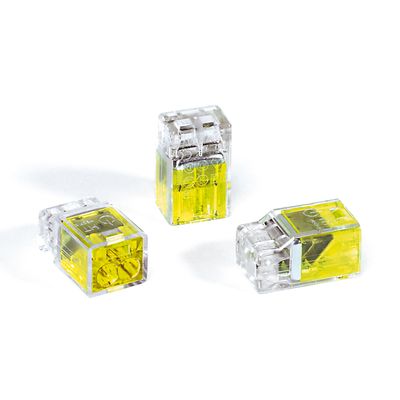

HelaCon Plus - Model 148-90048 -Push-In Style Wire Connector
Features & Benefits: Spring technology for safe, secure and reliable connections. Smaller footprint fits in tight spaces. Low insertion force makes installation of solid or stranded copper wire fast and easy. Color coded for easy identification of size. Each port accepts multiple wire diameters for flexible applications. Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
Article Number: 148-90048
Type: HCPM-2
Color: Yellow (YE) Clear (CL)
Quantity Per: pack
Product Description: HelaCon Plus Mini Wire Connectors replace traditional twist-on wire connectors. They provide faster, easier and more reliable connection and distribution of cable and conductors in electrical installation applications. Mini connectors have a compact footprint and can be applied tool-free using convenient, push-in simplicity. Internal spring technology is approved for solid and stranded wires.
Short Description: HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 2-Port, (PC), Yellow, 500/pkg
Global Part Name: HCPM-2-PC-CL/YE
Length L (Imperial): 0.65
Length L (Metric): 16.5
Width W (Imperial): 0.42
Width W (Metric): 10.8
Height H (Imperial): 0.30
Height H (Metric): 7.70
Depth D (Imperial): 0.65
Depth D (Metric): 16.5
Package Quantity (Imperial): 500
Package Quantity (Metric): 500
Customs Number: 8536908085
Material: Polycarbonate (PC)
Material Shortcut: PC
Flammability: UL 94 V-0
Halogen Free: Yes
UV Resistant (Yes/No): No
Operating Temperature: -22°F to +185°F (-30°C to +85°C)
Reach Compliant (Article 33): No
ROHS Compliant: Yes
Certification/Specification: CE | 2006/65/EC cULus UL | ANSI/UL 486-A UL | ANSI/UL 486-C ENEC SGS Fimko Ltd | EN 60998-2-2:2004 NEMKO AS | EN 60998-2-2:2004 SGS Fimko Ltd | EN 60998-2-2:201 Intertek Semko | EN 60998-2-2:2004 UL | ANSI/UL 486-B VDE | DIN EN 60998-2-2:2005-03 NF EN 60695-2-11 (2014) NF EN 60695-2-10 (2013)
UL Listed (US and Canada): Yes
UL Listed (US): Yes
