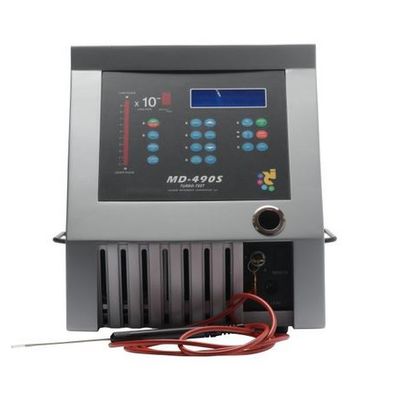

VIC - Model MD-490S Dual Gas -Helium/Hydrogen Leak Detector

SHARE

MD-490S Dual Gas is the most advanced sniffing Helium/Hydrogen leak detector designed specifically for industrial environments. The MD-490S Dual Gas utilizes VIC’s own industrial-grade mass spectrometer to achieve the highest sensitivity, fastest response-time, and smallest footprint.

Most popular related searches
helium/hydrogen leak detection
hydrogen leak detection
helium leak detection system
hydrogen leak
gas leak
helium detector
tracer gas leak detection system
hydrogen detector
cooling system
glovebox

With a touch of a button, this dual gas unit can detect either Helium or Hydrogen tracer gases, while using a single built-in dual purpose calibrated gas leak.

It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment..

AUTOMOTIVE

  • Exhaust System
  • Cooling Circuit
  • Engine
  • Battery
  • Oil Pan

  • AIR CONDITIONING

    • Condenser Coils
    • Evaporator Coils
    • Compressor Seals
    • Refrigerant Tubing
    • Valve and Joint

  • MEDICAL

    • IV Bag
    • Implantable Device
    • Syringe and Vial
    • Medical Pouch
    • Packaging

  • NUCLEAR

    • Fuel Rod
    • Coolant System
    • Containment Vessel
    • Storage Container
    • Glove Box

  • AEROSPACE

    • Fuel System
    • Hydraulic System
    • Oxygen System
    • Pressurized Cabin
    • Cooling System

Main Features

  • Fastest response time in the industry (less than 0.5 seconds)
  • Tracer gas background suppression
  • Sensitivity to 5 x 10-8 atm cc/secs
  • Less than 3 minutes total start-up time
  • Fully automatic calibration sequence with built-in dual purpose gas leak
  • User selectable between helium and hydrogen sniffer
  • Front panel key lock-out
  • Sealed membrane keypad
  • Fully interactive system diagnostics with multilingual displays
  • High output (110dB) adjustable audio alarm

Flexible Communication Format

  • Option Full duplex RS232 communication
  • Option AC & DC PLC interfacing
  • Option Analog outputs
  • Option Data Link Software

Options

  • VIC exclusive Vibrated-Probe w/built-in Auto Zero switch
  • Carrying Case
  • Portable Cart

Accessories

  • Smart Charge 5, Gas Handling Unit
  • Test Booths and Fixturing
  • Multi-point probes
  • Robotic Sniffing
  • Leak calibrator
  • Master leak
  • Connectors…
