PWL - Helix Screens
Among the fine screens, the PWL helix screen is probably the most efficient way to implement fine screen installations for small to medium-sized sewage treatment plants and industrial companies in some sectors. On this page we inform you comprehensively about the functions and advantages that this high-quality solution has to offer when used as a computing system. Do you have any questions or would you like an individual offer? Then do not hesitate to get in touch and get in touch with one of our experienced experts.
- screen, transport and dewater in one system
- high separation efficiency
- very space-saving construction
- hygienic waste water screening and residue drainage
- high ease of maintenance
- no use of splash water
- Materials: 1.4301 or 1.4571
- Hole widths 1 to 6 mm
- Gap widths 0.5 to 3 mm
- Installation angle 35°
- Channel widths from 350 mm

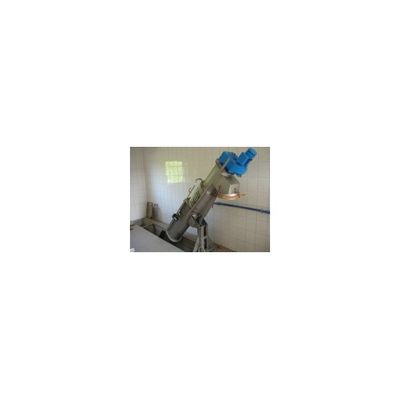

In a screening system with only one drive, the PWL spiral screen offers three functions: In addition to screening and separating solids from waste water and process water, the screenings are transported out of the screening area and dewatered. It is then ejected directly into a container or a subsequent conveyor unit - for example a spiral conveyor. Equipped with perforated screen surfaces or slotted screen baskets, the PWL spiral screen offers a very wide range of applications installed in open channels or as a container device. The ingenious swing-out mechanism makes the PWL helix screen one of the most maintenance-friendly variants among the spiral screens.
In the development of our machines and systems such as fine screens and coarse screensAt PWL, we draw on the comprehensive know-how of our employees, who have a wide range of experience in various industrial sectors and in municipal sewage treatment plants. With a design adjustment of the corresponding machines, we ensure that our customers get the maximum benefit from their systems. We deal with your current situation and discuss the optimal process technology for the separation process in your company. The possible further treatment and recycling of the respective accepts is also an integral part of our services as an expert in plant engineering. If you are interested in our helix sieve, would like to request further information or have specific questions, please do not hesitate to contact us. At PWL GmbH & Co. Anlagentechnik KG competent contact persons are at your disposal: Dipl.-Ing. (FH) Frank Berkenbusch and Dipl.-Ing. Katharina Drinkuth look forward to your inquiry and will be happy to help you with her extensive specialist knowledge.
