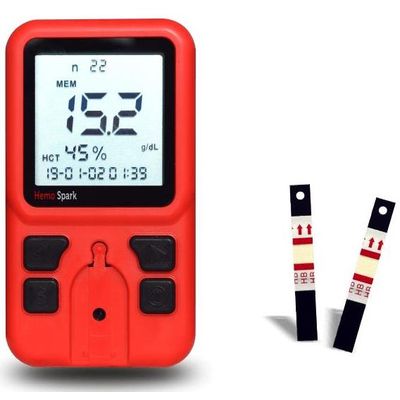

Sensa Core - Model Hemo Spark -Hemoglobin Meter for In Vitro Diagnostic Device
Sensa Core`s Hemo Spark is an in vitro diagnostic device that is used for quantitative testing of total hemoglobin in the blood. It is unique among the most portable and affordable hemoglobin meters which are user-friendly and reliable to measures hemoglobin levels in the blood. Sena Core`s Hemo Spark is an instrument used to determine the hemoglobin content of the blood by reflectance photometry measurement. Hemo Spark is a user friendly device and quite convenient for Hemoglobin screening, which is particularly useful in areas where no clinical laboratories are available. It is also useful in emergencies due to its ease-of-use, accuracy, and fast delivery of results. Sensa Core`s Hemo Spark provides accurate and reliable results which are acceptable to all major global standards.
- Methodology: Reflectance Photometer
- Test Time: Less than 30 seconds
- Automatic Shut Off: 5 minutes after last use
- Meter Size: 100 mm × 54.5 mm × 25.5 mm
- Display Size: 38.5 mm × 37.5 mm
- Weight: 72 g (without batteries)
- Meter Storage Conditions: 0 - 50 ºC (32 - 122 ºF)
- Operating Conditions: 2 - 40 ºC (35.6 - 104 ºF)
- Working Humidity: 5 - 95% RH
- Analyzer Port: USB Cable for Data Transfer & Power
- Capabilities: USB Data Transfer to PC and Printer
- Meter Warranty: 3 Years
- Strip (Working Environment): Working Temperature 2 - 40 ºC and Humidity 5 - 95%
- Strip (Storage Environment): Storage Temperature 2 - 40 ºC and Humidity 5 - 95%
- Strip Shelf Life: 18 Months
- Auto Calibration: Auto/Self Calibrations
- Sensitivity: More than 80%
- Specificity: More than 80%
- Bias (Limits of Agreement): 0.5 g/dL (±1gm/dL)
- Accuracy: 98%
- Reproducibility: CV : < 3%
- Measurement Range: 0 - 25.6 g/dL, 0 - 256 g/L, 0 - 15.9 mmol/L
- Sample: Whole blood (Capillary, Venous, Arterial)
- Sample Volume: 10 µL
- Power Source: 3 AAA Rechargeable Batteries (1.5V), AC Adapter (Mini USB, 5V DC, 1A)
- Battery Life: 100 hours or 1000 tests
- Units of Measure: g/dL, g/L, mmol/L
- Memory: 1000 records with date and time
- Protection Class: A
