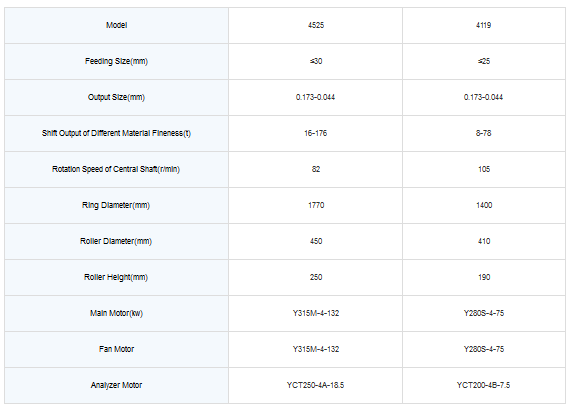

Henan - Model 4525 & 4119 -Raymond Mill
Raymond (Euro Type) mills can be used for the high-fine power processing in minerals, chemicals, construction, and other industries. Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
The new type of Raymond mill has a stronger grinding force with a protection device. Besides, the adjustment of the product fineness and the capacity can be finished during the Raymond mill operation.
In the beginning, Raymond grinding mill is only used as the coal grinding machine. While nowadays, the Raymond mill has been applied in all walks of life, especially in mines, chemical plants, pharmaceutical industry, refractory material factories, cement plants, etc.
Raymond Mill Structures: The main structures: the main body consists of a frame, an air inlet volute, scraper blade, star rack, a grinding roller, a grinding ring, air classifier, etc.
- Gave higher efficiency and lower power consumption.
- Small footprint and small one-time investment.
- Strong wear resistance and reliable operation.
Raymond grinding mill can process over 200 kinds of non-flammable and non-explosive materials. The materials Mohs hardness is no higher than 9.3 and the humidity is less than 6% (a small floating can be handled).
If the material humidity is too high, natural drying is recommended for a small-capacity grinding line; while a small-type rotary dryer is recommended for a large-capacity grinding plant to dewater the materials.
Many kinds of materials can be processed by Raymond mill. They can be dolomite, kaolin, gangue, fly ash, bentonite, gypsum, limestone, coal, slag, mica, etc.
Examples of applied materials of Raymond roller mill
Generally speaking, the main applied areas of Raymond roller mill are as follows:
1. In the coal industry and power plant, Raymond mill can be used to prepare pulverized coal and improve its utilization efficiency;
2. In the chemical industry, refractory materials and other fields, Raymond mill can be used for production
3. In the field of cement plant, dry mortar and building materials, Raymond roller mill can process limestone, etc. for the production of concrete and other building materials.
4. In the metallurgical industry, Raymond mill can process slag, which is used for metal recovery to improve the service efficiency of metal ore.
Different types of Raymond grinding mills are needed in different materials processes.
Raymond mill has a compact structure. The main parts are shovel blades, grinding rings, grinding rollers, analyzer, fan and so on.
The whole process is divided into two stages, the grinding process and powder separation process. The former is completed mainly by grinding rings and grinding rollers. The latter is finished by the separator.
Henan gomine Industrial Technology Co.,Ltd is a famous industrial company in the world, which is focusing on the provision of aggregate stone crusher machine, industrial raymond mill powder, briquette machine, Ore Beneficiation Machine, technology upgrading and systematic solutions.
