Henke - Model FVX - Folding V-Plow

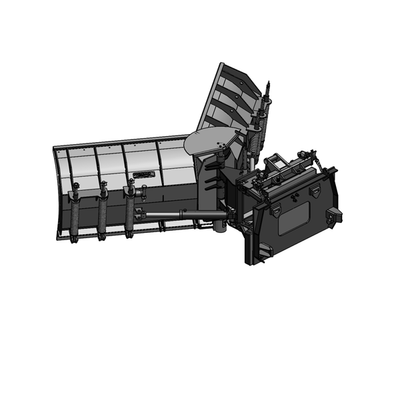

Henke - Model FVX -Folding V-Plow

The Henke FVX is ideal for urban/city plowing, especially for areas with lots of cul-de-sacs and roundabouts. The FVX adjusts to Scoop, Vee or Reversible plowing positions for maximum versatility.

Most popular related searches

hydraulic valve

V-Fold

angle valve

41″ tall moldboard
Moldboard Lengths: 10′, 11′, 12′, 14′
Cushion valves to relieve plow power reversing cylinders
Variety of Cutting Edges Available
Henke parallel lift system Or Chain Lift
(2) 3.5” bore x 16.25” stroke with 2” rod cylinders for wing operation
Compression spring trip-edge
Angle Width: (121” on 12’ only)
V-Width: (125.5” on 12’ only)
Scoop Width: (116” on 12’ only)

(3) auxiliary hydraulic valves required for the Henke FVX – Folding V-Plow

(2) auxiliary hydraulic valves to angle each wing section
(1) auxiliary hydraulic valve for raise / pitch

Henke - Model FVX -Folding V-Plow

Product Details
