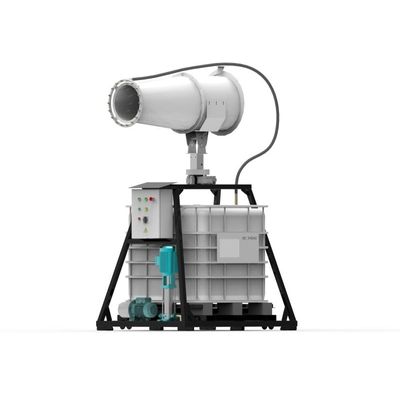

Hennlich - Model HE30T -Portable Mist Cannon with Tank
The HE30T cannon is a perfect unit for smaller job sites lacking the source of the water. It sits on the 1000 l water tank and is able to run for about 5 hours.
Most popular related searches
self-priming pump
water tank
booster pump
fog cannon
water pressure gauge
pressure gauge
water filter
self-priming motor pump
water pressure filter
water pressure control
STANDARD DESIGN
- single stainless steel nozzle crown
- carbon steel head
- horizontal rotation
- booster and self-priming pumps
- water filter, pressure gauge
- electric control panel
ELECTRO SPECS
- fan motor: 3,0 kW
- self-priming pump motor: 1,1 kW
- booster pump: 1,87 kW
- oscillation motor: 0,09 kW
TECHNICAL SPECS
- maximum throw: up to 30 meters
- coverage area: 1415 m2
- quantity of nozzles: 18 pcs
- droplet size: 50-150 µm
- water consumption: 216 l/h (at 10 bar)
- adjustable horizontal rotation: 0-350°
- water tank: 1000 l
- wireless remote control – allows the mist cannon to be operated from a distance
- auto vertical tilt
- 60 Hz frequency
