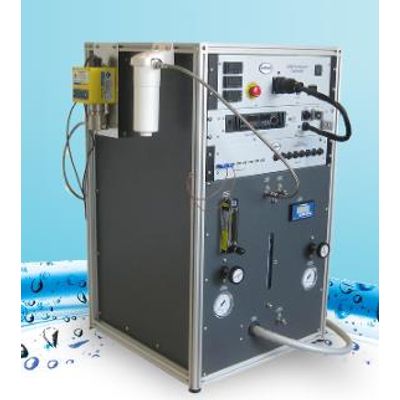

Hephas - Model 600 -Electrolyzer Test Station

The 600 Electrolyzer Test Station (ETS) is ideal for labs requiring detailed control, diagnostics and analysis of electrolyzer cells.

Most popular related searches

4 current range Potentioslat
±0.07/0.7/7/20 A, ±5 V, 100 W
Programmable Power Supply for operation up to 100 A, 5 V, 500 W
Automated switching between Potentiostat and Power Supply mode
Mass flow meters for real-time 0? and H? product flow rate monitoring
EIS and HFR in Potentiostat mode
EIS data compatible with IVievf, the world`s leading impedance analysis & equivalent circuit modelling software
Whole cell voltage plus two high-impedance reference electrode inputs for half-cell data
FlowCel(-EJ¥ application software for complete system control, experiment sequencing, graphing and data acquisition
Integrated back pressure to 2 barg
N7 purge on Cathode with Supplemental N7 on Anode
Anode feed water recycling or once-thru operating mode
In-line high-temperature Ion Exchange cartridge to maintain Anode feed water purity in recycle mode
Integrated 892e Data Expansion Module for additional 8 temperature + 8 analog inputs, e.g., pressure transducers
Safety features: E-Stop, Over Voltage/Current,
Over Temperature, Product Gas Cross-Contamination

Features
