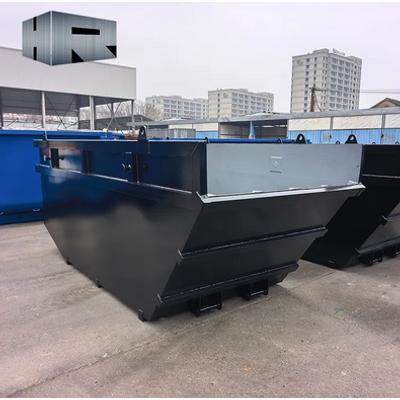

Hero - Lugger Bin for Concrete Waste

As a professional type of Skip Bin, our lugger bin for Concrete Waste is specially designed for the collection, storage and transportation of concrete waste, concrete debris, cement residues and other heavy construction materials.

This heavy duty skip bin combines the flexible mobility of a skip bin with the strong load-bearing capacity required for concrete waste handling, making it essential auxiliary equipment for construction sites, building demolition projects, concrete processing plants and renovation sites.

Made of high-strength wear-resistant steel, the bin adopts a reinforced lug connection design (the core feature of a lugger bin) and is fully compatible with skip bin lifting equipment and hooklift trucks, enabling fast loading, unloading and transportation.

The lugger skip bin effectively solves common challenges in concrete waste collection, such as heavy material weight, equipment wear, difficult transfer and dust spillage. It provides an efficient, safe and environmentally friendly concrete waste container solution for global construction and infrastructure projects.

Professional Lugger Bin Design for Concrete Waste Transfer

As a dedicated type of skip bin, this lugger bin adopts a reinforced lug connection structure that is integrally welded with the bin body. It offers strong load-bearing capacity and connection stability, enabling safe lifting and transfer of heavy concrete debris and construction waste.

The skip bin container is designed with a low center of gravity, ensuring stable placement even on uneven construction sites and preventing tipping during loading and unloading.

Compared with ordinary skip bins, this concrete Waste Skip bin is optimized for the high density and heavy weight of concrete waste, featuring thicker plates and stronger structural strength.

Heavy-Duty Wear-Resistant Steel Construction

The lugger skip bin is made of high-quality Q355B carbon steel with 16Mn wear-resistant steel used for the bin bottom and opening.

Plate thickness ranges from 8–14mm, with double-layer reinforcement at key stress points such as the lug connection and bin bottom.

Seamless integral welding prevents cracks caused by heavy concrete impact. The surface is treated with anti-rust spraying and wear-resistant coating, ensuring resistance against cement erosion, rain exposure and outdoor construction environments.

Dust-Proof and Anti-Spill Design

To address dust diffusion and small debris spilling during transportation, this concrete waste skip bin features a high anti-spill baffle (18–25 cm) at the bin opening.

An optional sealed bin cover further prevents dust diffusion and debris leakage, ensuring environmental protection on construction sites.

The sloped bin bottom allows thorough unloading of concrete waste, reducing residue and improving operational efficiency.

Dual Compatibility with Lifting Equipment

This lugger bin / skip bin container is compatible with two types of lifting equipment:

• Skip bin lifting equipment
• Standard hooklift trucks (such as ISUZU, XCMG, SANY)

The reinforced lug connection allows quick lifting and loading within 2–3 minutes, while the optional hooklift interface enables flexible transportation between multiple construction sites.

This dual compatibility makes the construction waste skip bin suitable for both fixed-point waste collection and mobile transfer operations.

Customizable Skip Bin Specifications

To meet different construction waste management requirements, this lugger skip bin supports extensive customization options, including:

• Bin capacity: 4m³ – 22m³
• Plate thickness
• Lug size
• Anti-collision strips
• Sealed bin cover
• Drainage holes
• Logo printing

The skip bin container can be customized into open, semi-sealed, or fully sealed structures, adapting to construction sites, demolition projects and concrete processing plants of different scales.

• Product Type: Lugger Bin for Concrete Waste (Skip Bin Type)
• Main Material: Q355B Carbon Steel, 16Mn Wear-Resistant Steel
• Plate Thickness: 8–14mm (Reinforced Stress Points)
• Capacity Range: 4m³ – 22m³ (Customizable)
• Rated Load: 10,000kg – 25,000kg
• Surface Treatment: Anti-Rust Spraying + Wear-Resistant Coating
• Connection Type: Reinforced Lug Connection (Skip Bin Standard), Optional Hooklift Interface
• Service Life: 10–18 Years (Proper Maintenance)
• Special Design: Low Center of Gravity, Anti-Spill Baffle, Sloped Bottom
• Customization: Capacity, Plate Thickness, Lug Size, Accessories

This lugger skip bin for concrete waste is widely used in various construction and infrastructure projects.

Concrete Construction Sites

Collection of concrete debris, cement residues and concrete blocks generated during pouring, formwork removal and curing.

Building Demolition Projects

Handling broken concrete and reinforced concrete waste during demolition.

Concrete Processing Plants

Collecting waste concrete generated during mixing and processing operations.

Building Renovation Sites

Managing concrete waste from wall, floor and column demolition during renovation.

Infrastructure Construction

Suitable for roads, bridges and tunnel construction sites requiring heavy-duty construction waste containers.
