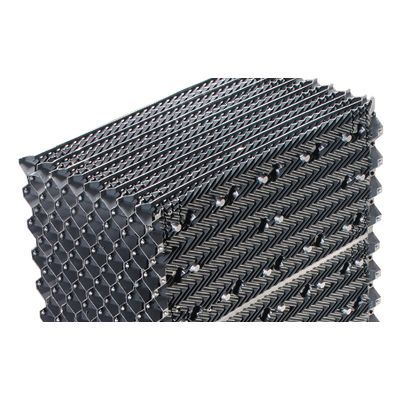

Brentwood - Model XF75 -Herringbone Fills

XF75 packs are available with a 5° or 10° angle for easy installation in package crossflow towers used in HVAC and light industrial applications. Specially designed for today`s higher capacity cooling towers where high water loading and air velocities are standard, they replace OEM hanging sheets with solid modules of rigid PVC, or HPVC, film pack. Once installed, this system forms a long-term, trouble-free replacement for the OEM material, and since it is bottom supported, XF75 allows for the basin to be easily cleaned out and maintained. XF75 is also available with integral drift eliminators or inlet louvers, combining drift loss and splash-out reduction with the standard pack`s high thermal performance.
