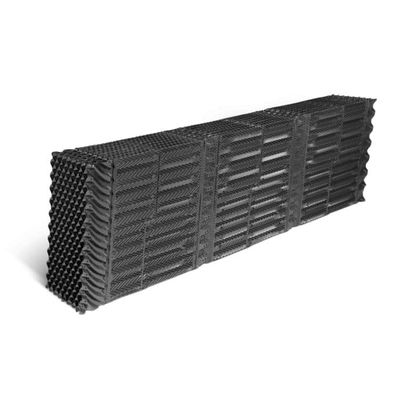

Brentwood -Â Model XF75Pro -Herringbone Film Fill
XF75Pro Crossflow fill improves air and water management over first-generation crossflow film fills, enhancing thermal performance by up to 10%. A new flute structure reduces pressure drop to improve thermal capability, and the enhanced structural design provides increased vertical pack strength, allowing for optimum product weight-to-height ratios. Herringbone fills with integrated inlet louvers (XF75Pro IL) and drift eliminators (XF75Pro ID) complete this efficient, high-performance, crossflow media system.
- Enhanced structural design for stronger packs.
- Redesigned drift eliminator reduces drift rate.
- Modified honeycomb feature reduces water splashout.
High Thermal Performance

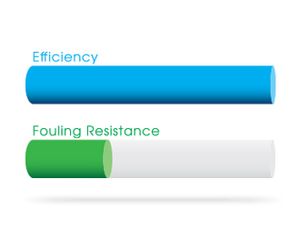

Herringbone fills provide a high level of efficiency that is nicely balanced with fouling resistance for increased tower performance.

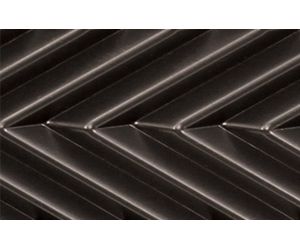

The engineered herringbone surface allows for even water distribution, and honeycomb bonded edges on the air inlets and outlets for strength.

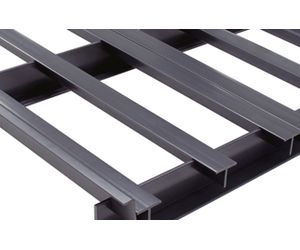

Herringbone fills are bottoms supported, allowing basins to be easily cleaned out and maintained.
