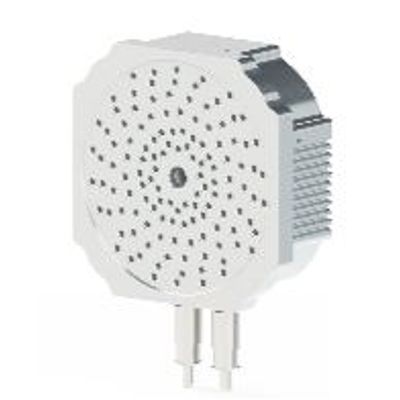

HERTZINNO - Model HZ-FA-371 -Online Acoustic Camera
The HZ-FA-371 by Hertzinno is an online acoustic imaging camera engineered for high-efficiency gas leak monitoring and partial discharge detection. It serves industries such as power, medical, oil and gas, and chemical sectors. The device is compact for easy installation and demonstrates excellent sensitivity to detect faint acoustic signals. HZ-FA-371 is energy efficient due to its low power consumption, making it ideal for continuous monitoring tasks. Enhanced with API integration, it connects smoothly with third-party platforms, inspection robots, and other systems for extensive real-time monitoring. It is equipped to handle strict outdoor conditions with an IP68 rating and anti-explosion design. The acoustic camera is reinforced with AI analysis for thorough detection and data interpretation, assisting engineers in evaluating partial discharge types and gas leakage levels swiftly. It also aids secondary system development with a complete set of API protocols, encouraging robust adaptation into existing digital ecosystems.The HZ-FA-371 is an online acoustic imaging camera, setting a new standard as the world’s highest protection level acoustic camera. It is designed for gas leak monitoring and partial discharge detection in industries such as power, medical, oil & gas, and chemical. The device is compact, making it easy to install, and it boasts high sensitivity, enabling it to accurately capture even the faintest acoustic signals. HZ-FA-371 features low power consumption, making it highly efficient for continuous monitoring applications. With API integration capabilities, it seamlessly connects with 3rd-party online platforms, inspection robots, and other systems, enabling comprehensive and real-time monitoring and maintenance.
Hydrogen Gas Leak Monitoring
Online acoustic cameras can monitor hydrogen leaks in real-time, ensuring timely detection and response to potential hazards.
Outdoor Environment Monitoring
Highly adaptable to environmental conditions and can operate steadily under various extreme weather conditions.
Critical Asset Condition Monitoring
For key assets such as electrical equipment, oil and gas equipment, and mining equipment, can monitor the equipment status in real-time, and prevent potential failures.
- 128 MEMS Microphones
- 2kHz ~ 65kHz detection
- Multiple sound sources detection
- 7*24h monitoring
- Real-time PRPD
- Real-time estimate gas leak
- Ex ib IIC T4 Gb
- Ex ib IIIC T80°C Db
High Reliability
Fixed acoustic camera, adopting an integrated design with IP68 and anti-explosion, suitable for installation in gas leakage and partial discharge scenarios and robot-mounted scenes for outdoor monitoring.
Professional Technology
Relies on a world-class acoustics team and acoustic research institutions. We feature more stable imaging effects and higher sensitivity in imaging performance.
Secondary Development
Provides a complete set of API protocols to assist users in secondary development, enabling efficient integration of the device with 3rd-party platfroms.
AI-Powered
The acoustic camera built-in AI analysis capabilities, assisting engineers in analyzing PD types, gas leakage amounts and other information.
- Model : HZ-FA-371
- Microphones : 128 channel MEMS microphones
- Acoustic Image Resolution : 1920*1080
- Distance : 0.3m ~ 50m（1ft - 164ft）
- Sampling Rate : 130kHz
- Camera FOV : 65°
- Imaging Frame : 25FPS
- Focal Length : 3.9mm
- Microphone Self-diagnosis : YES
- Encord : H.264
- Video File Format : AVI
- Transmission : RJ45
- Power Supply : DC 12V/3A
- Protection Level : IP68
- Weight : Approx. 900g
- Dimension : 135mm* 171.43mm* 48mm
- Working Temperature Range : -20℃ ~ 70 ℃
- Storage Temperature Range : -30℃ ~ 85 ℃
- Annotations : YES
- Application Scenarios : Partial discharge , Air leaks
- Anti-explosion : ExiblICT6Gb:ExibllICT80℃ Db
- Stream Formats : RTSP
- Leak Rate : >0.035 l/min (120KPa @0.3m) >0.067 l/min (300KPa @3m) >0.09 l/min (300KPa @5m)
