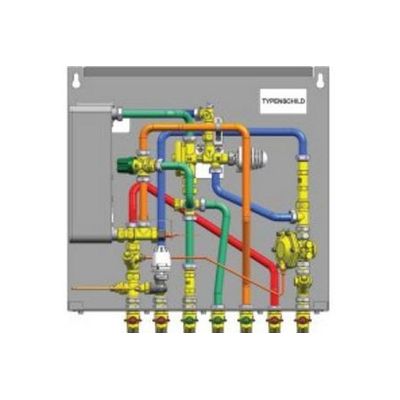

HERZ - Model 4008 -Hydraulic Interface Unit
Compact substation for drinking water systems and radiator heating utilising a countercurrent heat exchanger made of Cu/ Ni brazed stainless steel. Central controller for hot water only operates as a pressure drop is detected when a hot tap is opened. Assembly is available in surfacemounting or flush-mounted versions. Pipe connection to an HIU is realised by means of a patented mounting system with pre-mounting unit. This unique installation system saves the installer the often complicated and time-consuming calibration and adjustment measures required on existing (pre-) installations.
Most popular related searches
fine mesh screen
thermostatic mixing valve
cold water meter
drinking water system
water metering
ball valve
water meter
drinking water
drinking water radiation
thermostatic valve
Pipe connection is realised by means of a ball valve with T-handle.
- Safety against scalding by integrated HERZ-thermostatic mixing valve.
- Differential pressure controller with fixed DP (23 kPa)
- Adaptor for cold water meter
- Adaptor for heat meter
- Strainer with fine-mesh screens for heating systems on the supply primary pipe and return secondary pipe.
- Max. operating temperature 90°C
- Max. operating pressure 10 bar
- Min. static cold water pressure 2.8 bar
- Tap output 15 l/min (10/50°C)
- Heat exchanger output 45 kW The following accessories to be ordered separately:
- HERZ flush-mounted body 1 4008 06
- HERZ cover 1 4008 08
