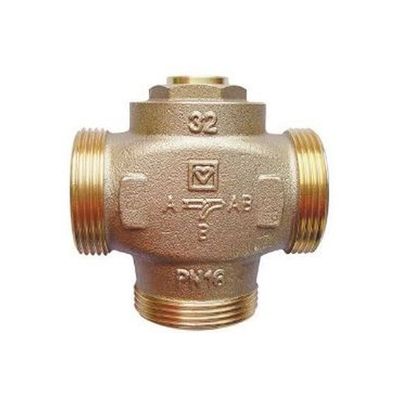

HERZ-TEPLOMIX - Model 7766 -Mixing Valve

The Teplomix-Three-Way valve is equipped with a pre-set constant temperature control and it is used as mixer in return. For throttling of bypass between flow and return. Max. application temperature range till 110 °C Models ..-03 and ..-14 with bypass. Temp. approx. 61 °C. Models ..-13 and ..-14 with bypass closing function, Temp. approx. 55–63 °C. Leakage rate max. 10%. DN 25, kvs = 11; DN 32, kvs = 14.
