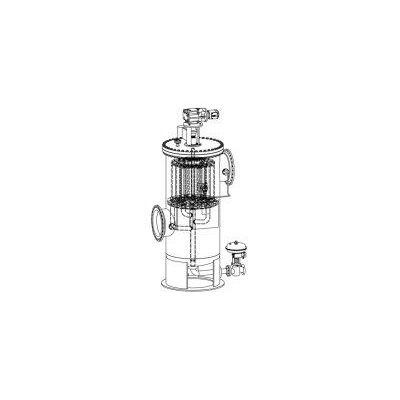

Heta - Model RSA -Fully Automatic Backflushing Filter
Fully automatic backflushing filters are primarily used for the filtration of high polluted liquids and work almost wear-free. Due to its simple backflushing system, this self-cleaning filter can also be used for highly viscous media and in high temperature areas. The cleaning process is possible without interruption of filtration.
Most popular related searches
automatic backflush filter
self-cleaning filter
backflush filter
filter element
butterfly valve control
differential pressure transmitter
filter cleaning
ball valve
shut-off valve
proximity switch
Characteristics of the filter system
- Filtration of solids from liquids
- Design pressure up to 25 bar
- Temperature range from -10 °C to 220 °C
- Suitable for filter finenesses larger 25 µm
- Self-cleaning filter elements
- Cleaning without filtration interruption
Materials
The filter vessel can be produced of stainless steel or carbon steel (with or without inner lining).
Inserts- Slot type cylinder
- Perforated plate cylinder
The filter elements can be supplied made of stainless steel, titanium, Hastelloy, Monel / Inconel or Super Duplex materials. Other material can be supplied upon request.
Benefits of the filter system
- Reusable filter element
- Long operating times
- Very high flow rate possible
- Almost wear-free filtration (filter elements)
- Ex-protected construction of the system possible
Accessories
- Differential pressure transmitter / manometer
- Level indicator / sight glass
- Quick acting closure
- Cover lifting and swivelling device
- Automatic vent
- Safety vent valve
- Shut-off unit (ball valve or butterfly valve)
- Control (IPC / LOGO / SPS)
- Proximity switch with timing disc
- Three-phase motor
