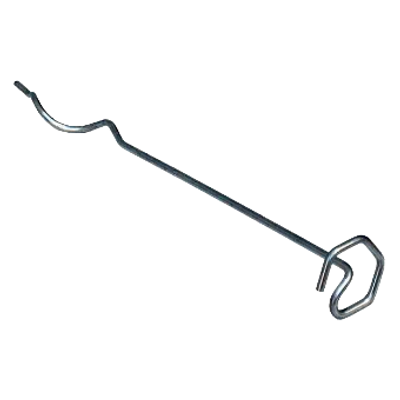

Western Excelsior - Model Falcon HC-12 -Hex Pins

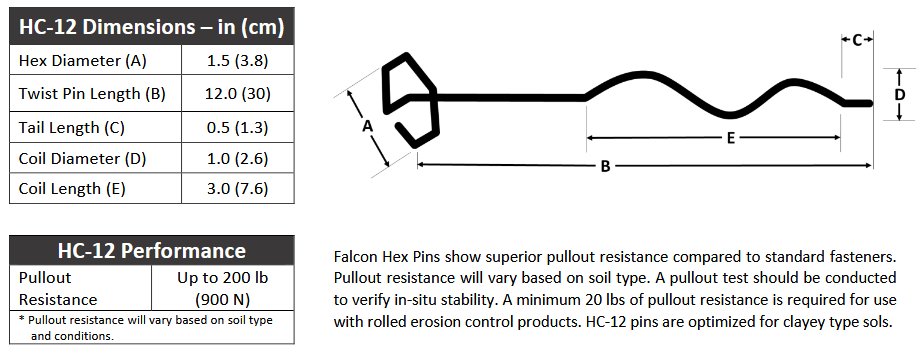

Falcon Pins by Western Green are a patent-pending fastener designed to secure erosion control mattings in place with a pull-out strength up to 10 x that of sod staples. The Falcon HC-12 has a unique 'corkscrew' coil configuration designed for soft, clayey soils. With the 'hex head' shape, the HC-12 pins are easy to install using a hand drill with a 1.5" socket attachment. For faster and easier installation, a custom driving socket is available. HC-12 pins are galvanized, made in the USA and can be installed on ARRA projects.
HC-12 pins can be installed with an 'off-the-shelf 1.5" socket. A custom socket for improved performance is shown to the right.
Ensure the tip is pushed below the TRM before drilling into ground to avoid entanglement.
Ensure no debris is on the Falcon Pin before drilling. Debris may cause TRM fibers to entangle
With light-weight nets, keep tension on blanket.
