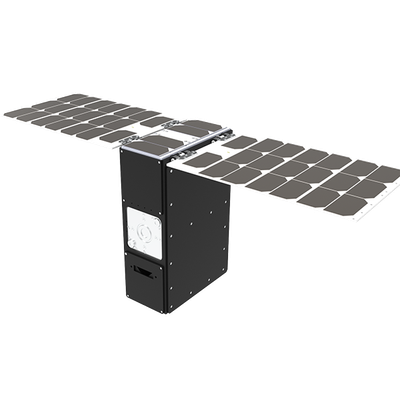

HEX20 - 6U CubeSat Bus for Commercial and Scientific Missions

The HEX20 6U CubeSat Bus offers a high-performance, high Technology Readiness Level (TRL) platform for various commercial and scientific missions, including signals intelligence, geospatial intelligence, air traffic monitoring, earth observation and space science. The 6U spacecraft bus is designed with advanced CubeSat pointing and data downlink capabilities, ensuring optimal satellite orbital life while reducing maintenance costs.Structural dimensions are 10x20x30 cm, with a mass of 3 kg. Equipped with SmartFusion2 and Xilinx Trenz Dual Cortex-A9 SOM for onboard computing, the bus supports multiple communication bands such as UHF, X-Band, and optional S-Band, and is CCSDS compliant. It provides an average payload power of 30-80W, depending on the configuration. Telemetry data rates range from 19.2 kbps (UHF at 9.3 kbps, S-band at 1-5 Mbps, and X-band at 15-100 Mbps). High-precision pointing capabilities are at 30 arc seconds across three axes. Interface options include I2C, UART, RS 232, RS422, SPI, LVDS, CAN. Payload mass capacity ranges from 4-7 kg, and available power buses include 3.3 V, 5 V, customizable 6-15 V, and battery raw.

HEX20 6U platform is an ideal and tactical solution for commercial and scientific missions in domains such as signals intelligence, geospatial intelligence, air traffic monitoring, earth observation, and defense/space science.

The Hex20 6U spacecraft bus is a high-performance, high TRL bus with state-of-the-art CubeSat pointing and data downlink capabilities. This feature-rich CubeSat platform helps in getting maximum satellite orbital life and considerable savings on the maintenance costs.

Structural Dimensions :
10X20X30 cm/h3>

OBC :
SmartFusion2, Xilinx Trenz Dual cortex-A9 SOM

Structural Mass :
3 kg

Communication :
UHF, X-Band, S-Band(optional), CCSDS Compliant

Average Payload Power Available :
30-80W
(configuration dependent)

Telemetry Data Rate :
19.2 kbps
(9.3kbps UHF, 1-5 Mbps S-band, and 15-100 mbps X-band)

Pointing :
30 arc second over three axis

Interfaces :
I2C,UART, RS 232, RS422, SPI, LVDS,CAN

Available Payload Mass :
4- 7kg
(configuration dependent)

Available power buses :
3.3 V, 5 V, customizable 6-15 V and Battery raw

HEX20 - 6U CubeSat Bus for Commercial and Scientific Missions

Details

HEX20 6U platform is an ideal and tactical solution for commercial and scientific missions in domains such as signals intelligence, geospatial intelligence, air traffic monitoring, earth observation, and defense/space science.
