Hexa-Cover - Oil & Gas / API Floating Cover

SHARE

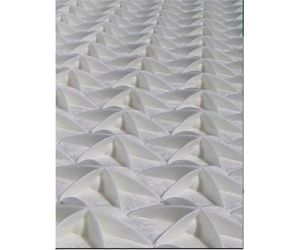

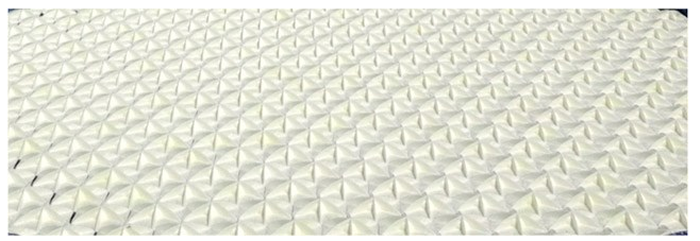

The unique and patented Hexa-Cover Floating Cover is perfect for almost any type of Oil & Gas and API applications. The Hexa-Cover Oil & Gas / API products has proven to be an effective and efficient option for hot heavy oil duty applications such as CHOPS, Diluted Bitumen SAGD.

Most popular related searches
floating cover
thermal shock testing
thermal shock test
BTEX
water pond
water tank
shock test
fracking water
tailings pond
API separator
Hexa-Cover OIL & Gas Duty is
  • Reduce emissions such as BTEX benzene, Toluene, Ethylbenzene and Xylene. Eliminate or reduce water vapour that act as a carrier of VOCs that add to odour problems
  • Reduce heat loss resulting in lower operating costs. Insulation for liquid surface in a heated crude oil tank lowers operating costs for CHOPS facilities and central processing batteries.
  • Reduce offensive and carcinogenic BTEX odours.
  • Reduce tank head space corrosion by lower levels of humidity above the liquid level.
  • Reduce or possibly eliminate expensive defoaming chemicals.
  • Reduce energy needed to reach optimum process temperatures.
  • Reduce the amount of water vapour generated as steam. Steam causes icing of the thief hatch and the transport of other odours from the tank.
Hexa-Cover OIL & Gas Duty is
  • Chemically compatible with heavy oil components up to temperatures of 100 °C and for SAGD dilbit sales tanks
  • Resistant to weight gain
  • Polymer is anti-static surface with a value of 3.7 x 1009 Ω
  • Resistant to thermal shock. Tested at -40 °C to +100 °C for sudden rapid temperature exposure
  • Can be installed while existing tanks are in operation
  • Conventional Crude Oil
  • Frac Oil
  • Gasoline, Diesel and other Refined Products
  • Thermal Heavy Oil
  • SAGD Dilbit Sales Tanks
  • Sour Sand Slurry Tanks
  • Process Water Ponds
  • Purified Tailings Ponds
  • Frac Water Tanks
  • API Separator
  • Diagonal measure: 20.98 cm +/- .32cm
  • Height: 8.38cm +/- .127 cm
  • Weight: 286g +/- 16g
  • Density: 0.375g/cc (+2 / -1%)
  • Plate thickness at sphere 1.78cm
  • Plate thickness at outer perimeter 1.14 +/- .127cm
