Sudenga - Hi-Efficiency Portable Auger (To 82` In Length)
This is the Ox Hi-Efficiency series. It’s busy working right now. The Hi-Efficiency portable auger features a versatile hydraulic scissor lift, bottom drive PTO, and gimbal mount hinged hopper. Up to 82` long, and capacities up to 7,000 bushels per hour. If you`re looking to goof around, keep looking. Available in painted or galvanized finishes.
Most popular related searches

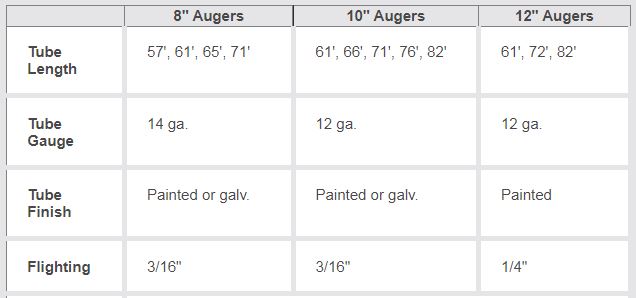

- 8", 10" and 12" diameter tubes
- 8" and 10" galvanized or painted finish
- 12" painted finish
- Hydraulic cylinder scissor lift and heavy duty top and side cable trussing for rigid performance.
- Capacity to 7,000 BPH
- 8" Diameter: 3,200 BPH
- 10" Diameter: 5,000 BPH
- 12" Diameter: 7,000 BPH
Driveline: Direct constant velocity joint on PTO-to-flighting connection; double bearings; shear pin protection
Transport:
- Hydraulic scissor lift; 4-bolt rims (8`` augers) or 6-bolt rims (10``/12`` augers); roller bearings for road transport.
- Transport widths: 10` (8`` augers) and 10½` (10``/12`` augers).
Swing Hopper:
- Mechanically driven by roller chain and double gearbox from auger flight; gimbal mount is easy to position; UHMW sealed hopper joint keeps weather out and grain in; 10`` and 12`` hoppers are hinged at the hopper to incline joint.
- CV joint is standard on 10`` and 12``. Hopper intake flighting is 5/16`` thick on all models.
